SETCAS FTT Brand New Model Spin Coater
FFT Spin Coater
Intelligent Integrated
Spin Coater
Built-in Vacuum Pump Design & 7-inch HD Retina Display.
Introducing the all-new FFT Series. We have completely redesigned the instrument to feature a fully integrated, built-in vacuum pump system. This "All-in-One" design eliminates the need for bulky external pumps and messy hoses, saving valuable laboratory bench space and ensuring a cleaner, quieter workspace.
Despite the compact new look, it retains the core power you rely on: a high-precision motor delivering speeds from 50 to 14,000 RPM with an incredible real-time adjustable acceleration of up to 80,000 RPM/s. Controlled via a stunning 7-inch HD Retina touch screen, the FFT series combines futuristic design with professional performance for substrates up to 6 inches.
Choose Your Model
Select the configuration that best fits your experimental needs.

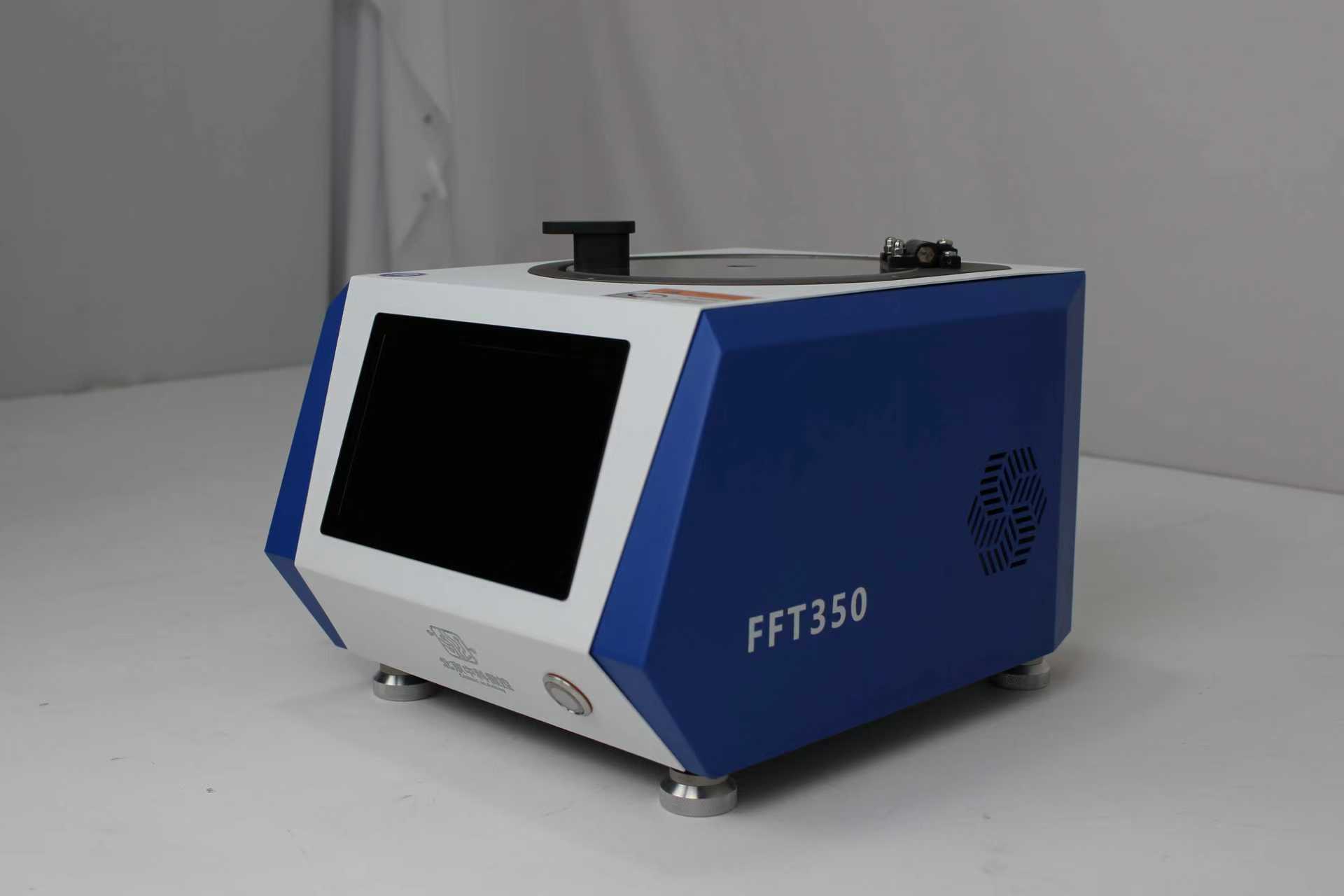

FFT-350
Standard Integrated Version- Design: New Integrated Design with Built-in Pump.
- Substrate Size: Up to 6 inches (150mm).
- Speed Range: 50 - 14,000 rpm.
- Acceleration: 10 - 80,000 RPM/S (Real-time adjustable).
- Display: 7-inch HD Retina Touch Screen.

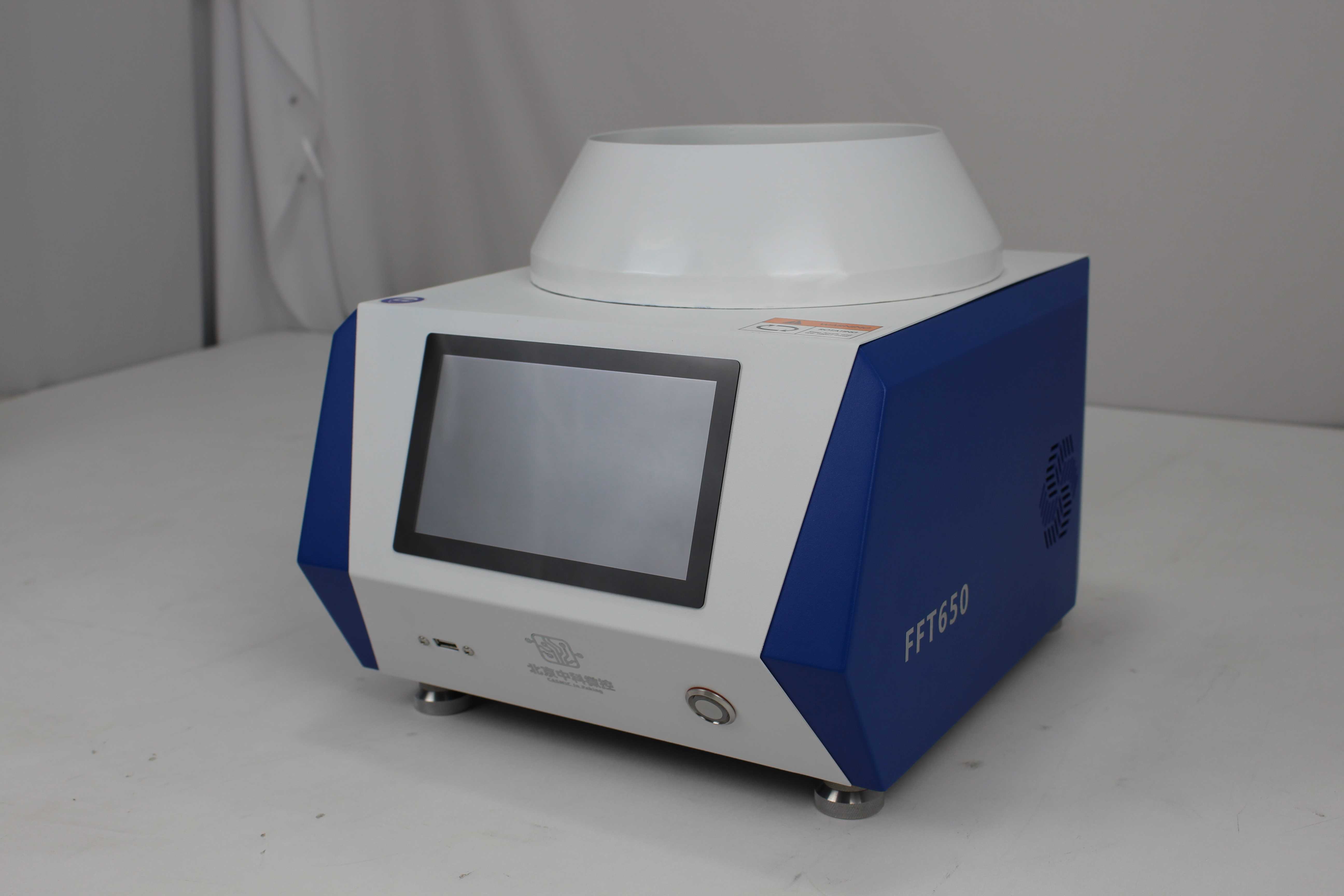

FFT-650
With Integrated Developing- All features of FFT-350, PLUS:
- Developing Function: Integrated developing capabilities.
- Design: Same compact, integrated body.
- Versatility: Ideal for complex lithography processes.
- Acceleration: 10 - 80,000 RPM/S.
Technical Specifications
Detailed comparison of technical parameters.
| Core Performance Data | |
|---|---|
| Speed Range | 50 – 14,000 rpm |
| Acceleration Range | 10 – 80,000 rpm/s (Real-time adjustable) |
| Substrate Size | Max support 6 inches (150mm) |
| Vacuum System | Built-in Oil-free Vacuum Pump (Integrated Design) |
| Vacuum Adsorption | One-key start/stop vacuum |
| Control & Structure | |
| Human Machine Interface | 7-inch HD Retina Touch Screen |
| Control Features | High-resolution display; Real-time curve monitoring |
| Chamber Material | PTFE (Teflon); Corrosion-resistant & easy to clean |
| Developing Function | FFT-650 Only (Integrated Developing) |
CE Declaration
Verified by Shenzhen Shuofeng Testing
Request Quote & Contact Us
香港賽德凱斯電子有限公司
HONG KONG SETCAS Electronics Co., Ltd
Visit Our Online Stores
-Built-in Vacuum Chuck – No external pump; secure samples, high safety
-Speed Range: 50-14,000 RPM – Covers most coating needs
-Adjustable Acceleration: 10-80,000 RPM/S – Precise film control
-Optional FTT Coating & Developing – One-stop photoresist solution
