SETCAS SC-H-I Hot Plate Room temperature -300 ℃ -400℃ -500℃ heating Factory direct sales
SC-H-I
Precision Hot Plate
From Standard Heating to Advanced Vacuum & Nitrogen Baking.
This professional glue baking equipment supports samples up to 12 inches (300 mm), featuring an integrated design with adjustable nitrogen purging, vacuum evacuation, and configurable lifting (0–30 mm, automatic arbitrary positioning).
It offers programmable temperature ramp-up profiles (N recipe groups, 10 segments each) for flexible process customization. With recipe export and external mouse/keyboard compatibility, operation is streamlined. Ideal for high-volume production and precision R&D requiring strict process control.
Choose Your Model
Select the configuration that best fits your experimental needs.

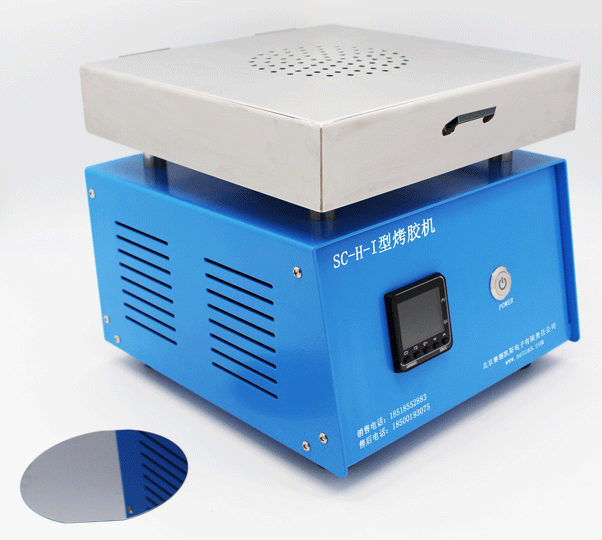

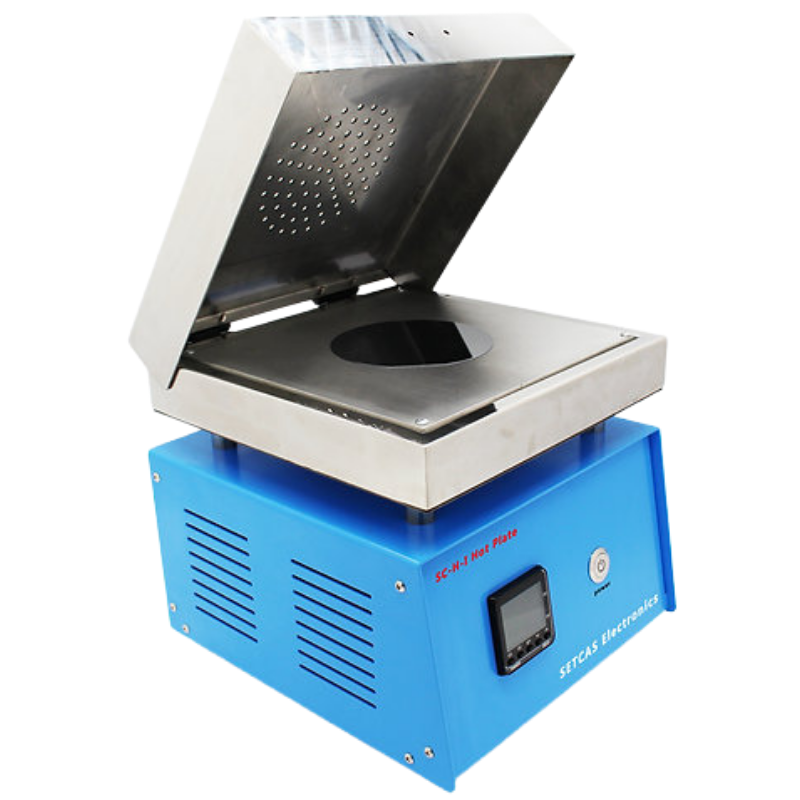

SC-H-I
Standard Digital Version- Temp Range: Room Temp to 300°C.
- Plate Size: 200 × 200 mm (8 inch).
- Control: Digital Display.
- Operation: 24/7 Uninterrupted.
- Design: Stainless Steel Construction.

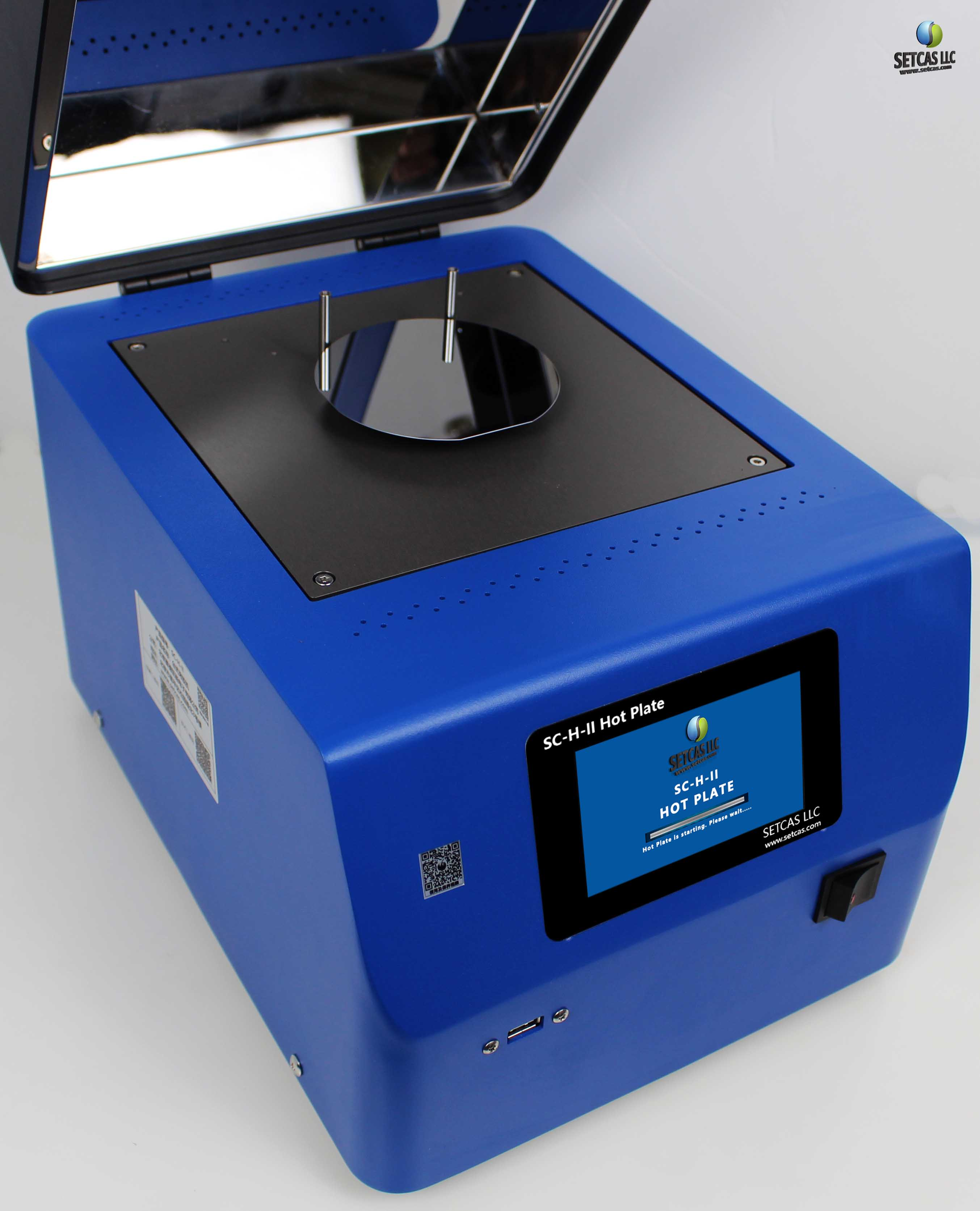

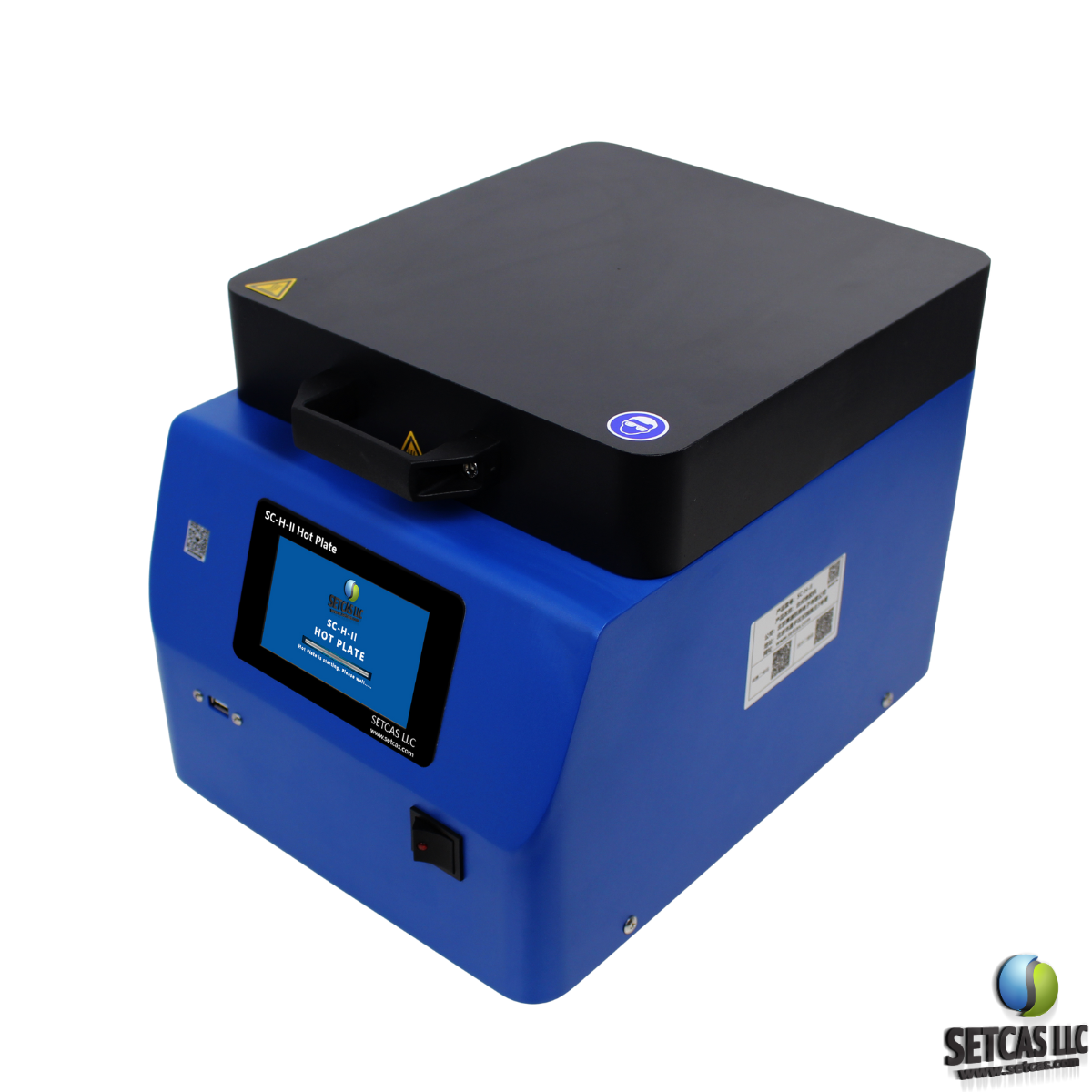

SC-H-II
Programmable & Vacuum- Temp Range: Room Temp to 450°C.
- Atmosphere: Vacuum / Nitrogen purge support.
- Lift: 0-30mm automatic positioning.
- Smart: Touch screen, 10-segment programs.
- Connectivity: Mouse/Keyboard/PC export.

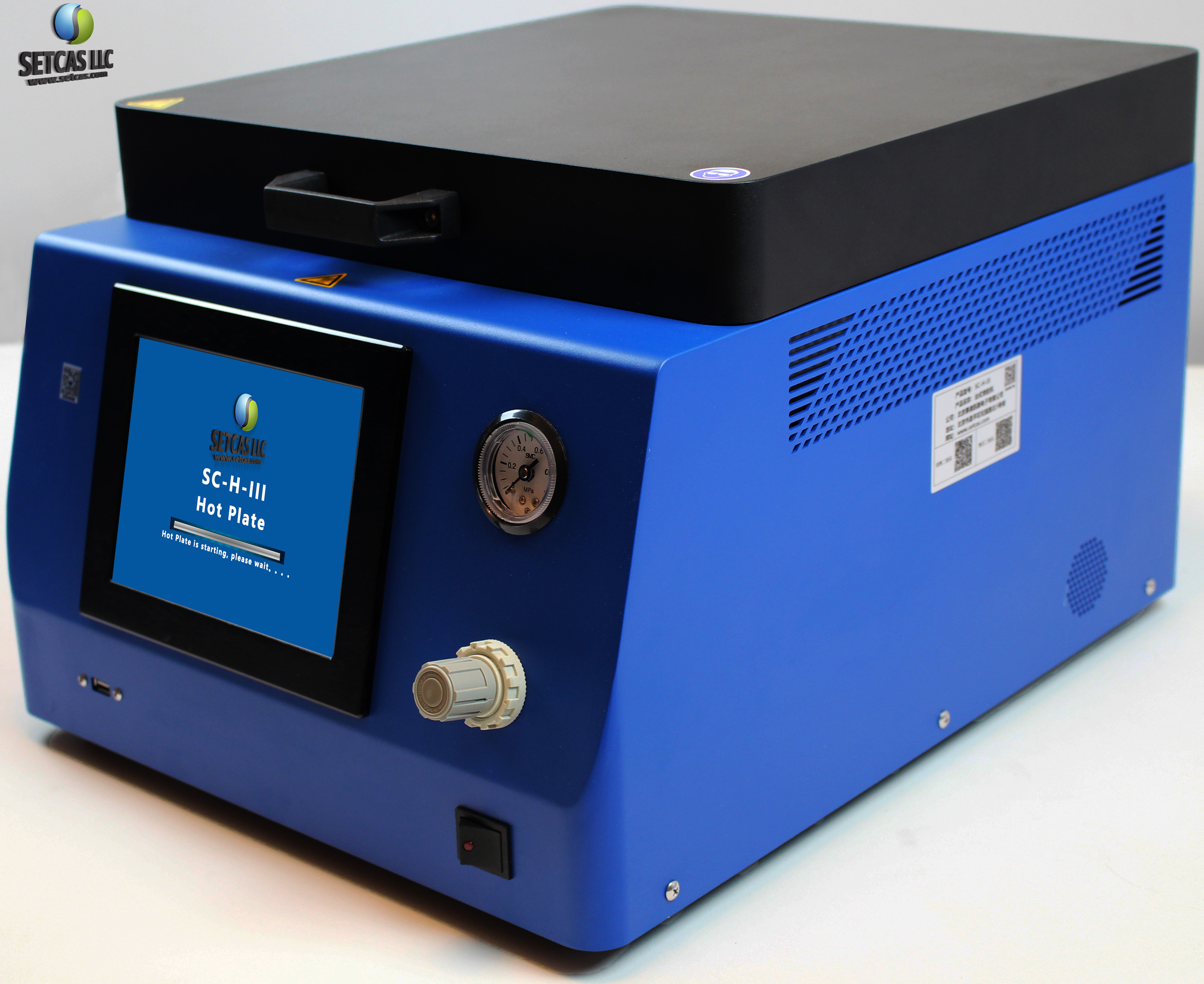

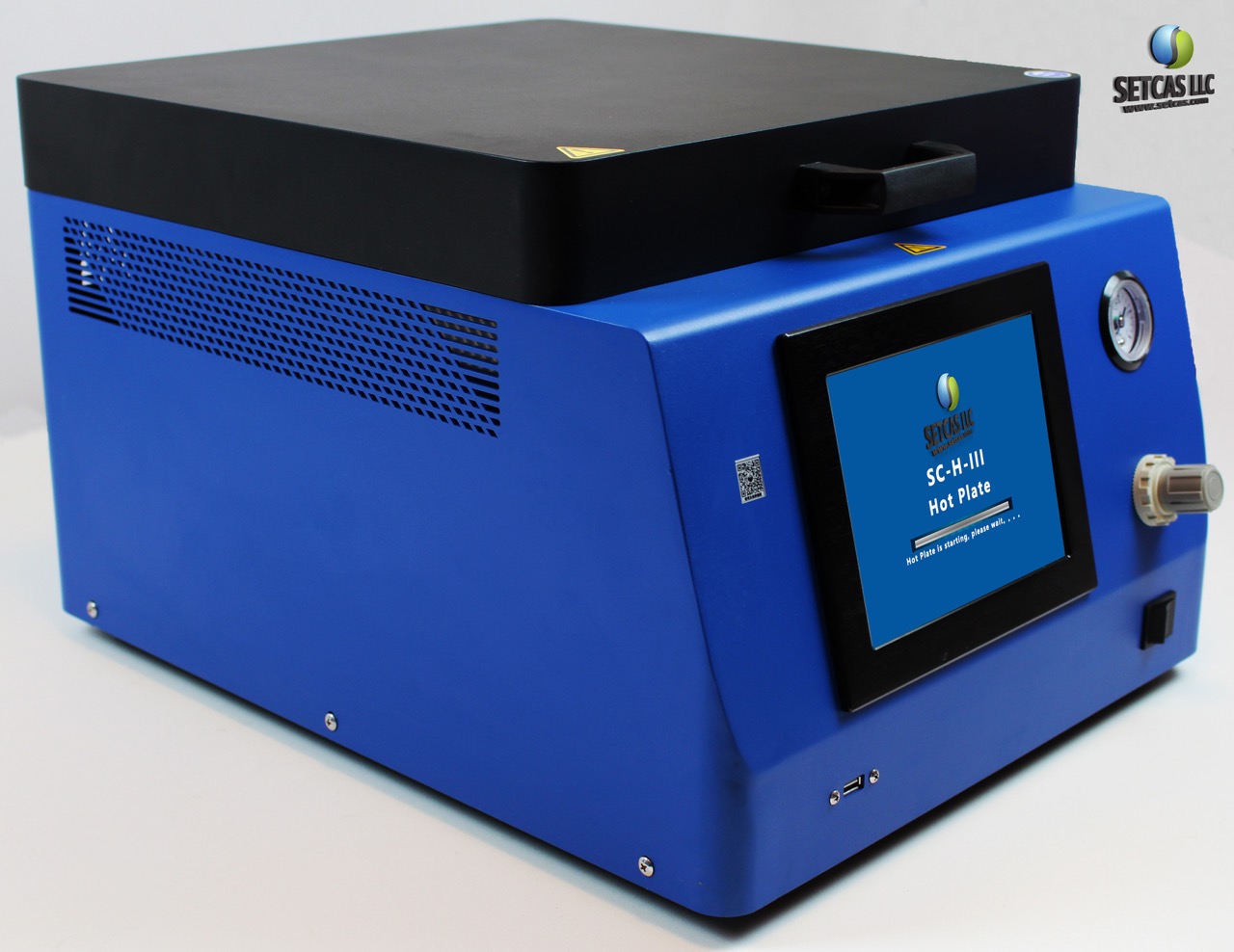

SC-H-III
Large Size & High Temp- Temp Range: Room Temp to 500°C.
- Plate Size: 300 × 300 mm (12 inch).
- Atmosphere: Vacuum / Nitrogen purge support.
- Lift: 0-30mm automatic positioning.
- Smart: Touch screen, programmable.
Technical Specifications
Detailed comparison of technical parameters.
| Parameters | SC-H-I (Standard) | SC-H-II (Advanced) | SC-H-III (Pro Large) |
|---|---|---|---|
| Origin | R&D by American team, production and assembly in Beijing | ||
| Hot Plate Dimension | 200 × 200 mm (8 inch) | 200 × 200 mm | 300 × 300 mm (12 inch) |
| Indoor Temperature | RT - 300 °C | RT - 450 °C | RT - 500 °C |
| Temperature Uniformity | ±3% | ±0.5°C | ±0.5°C |
| Constant Temp Fluctuation | - | ±0.5°C | ±0.5°C |
| Lifting Range | - | 0-30mm (Arbitrary Positioning) | 0-30mm (Arbitrary Positioning) |
| Atmosphere Control | - | Nitrogen (Adjustable) / Vacuum | Nitrogen (Adjustable) / Vacuum |
| Nitrogen Pressure | - | 0.2 - 0.8 MPa | 0.2 - 0.8 MPa |
| Programming | - | 10 segments, N groups | 10 segments, N groups |
| Peripheral Compatibility | - | Export formula, Mouse/Keyboard | Export formula, Mouse/Keyboard |
| Operating Voltage | AC100-240V, single phase | AC100-240V, single phase, 1kW | AC100-240V, single phase, 1kW |
| Product Dimension | 210(W)×220(D)×160(H) mm | 270(W)×379(D)×271(H) mm | 420(W)×560(D)×360(H) mm |
| Net Weight | 6.5 kg | 6.5 kg | 12 kg |
| Installation Method | Place on a horizontal desktop | ||
| Ambient Temperature | 0 - 40°C | ||
| Relative Humidity | < 85% | ||
| Warranty | 1 Year | ||
