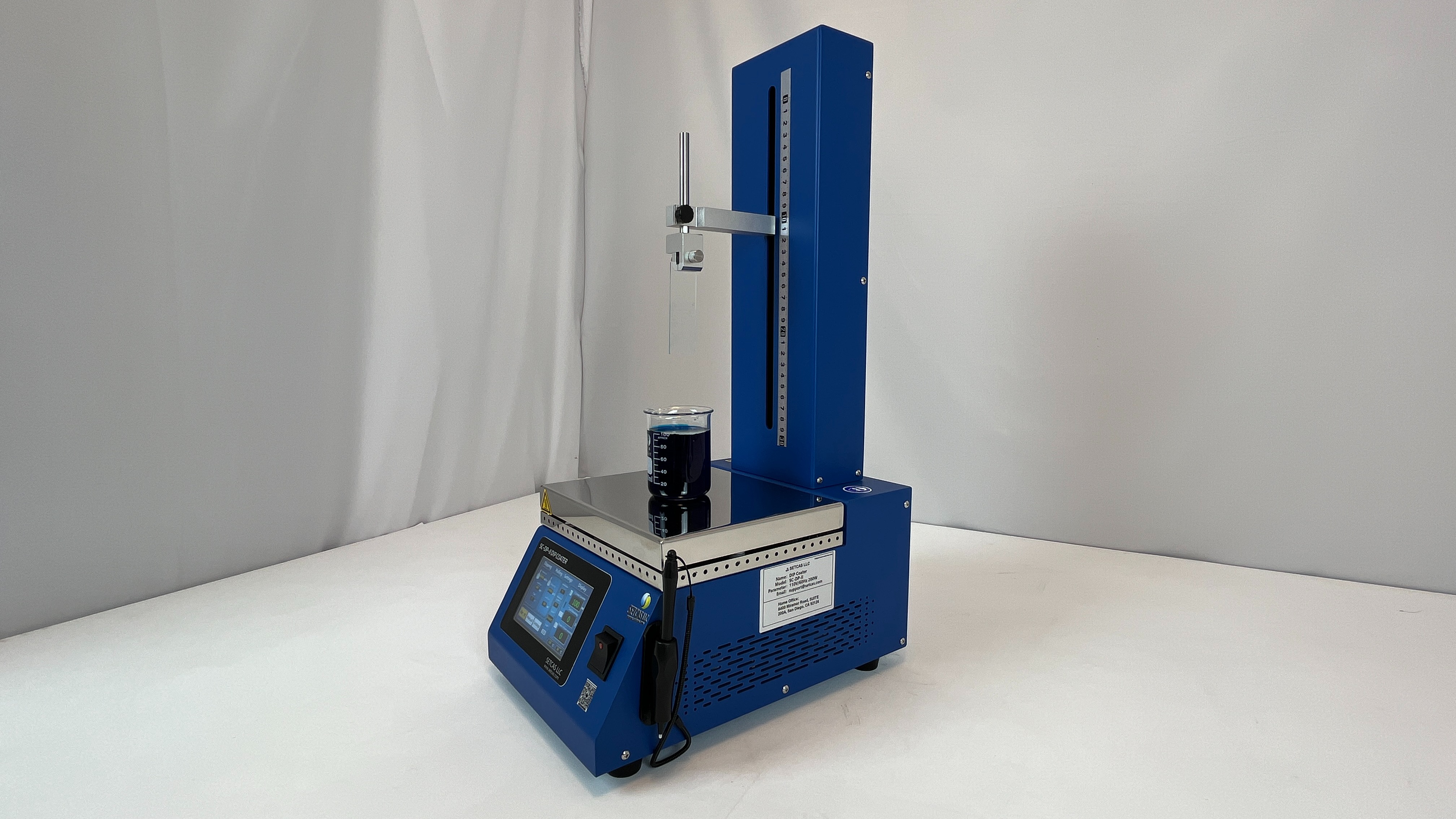

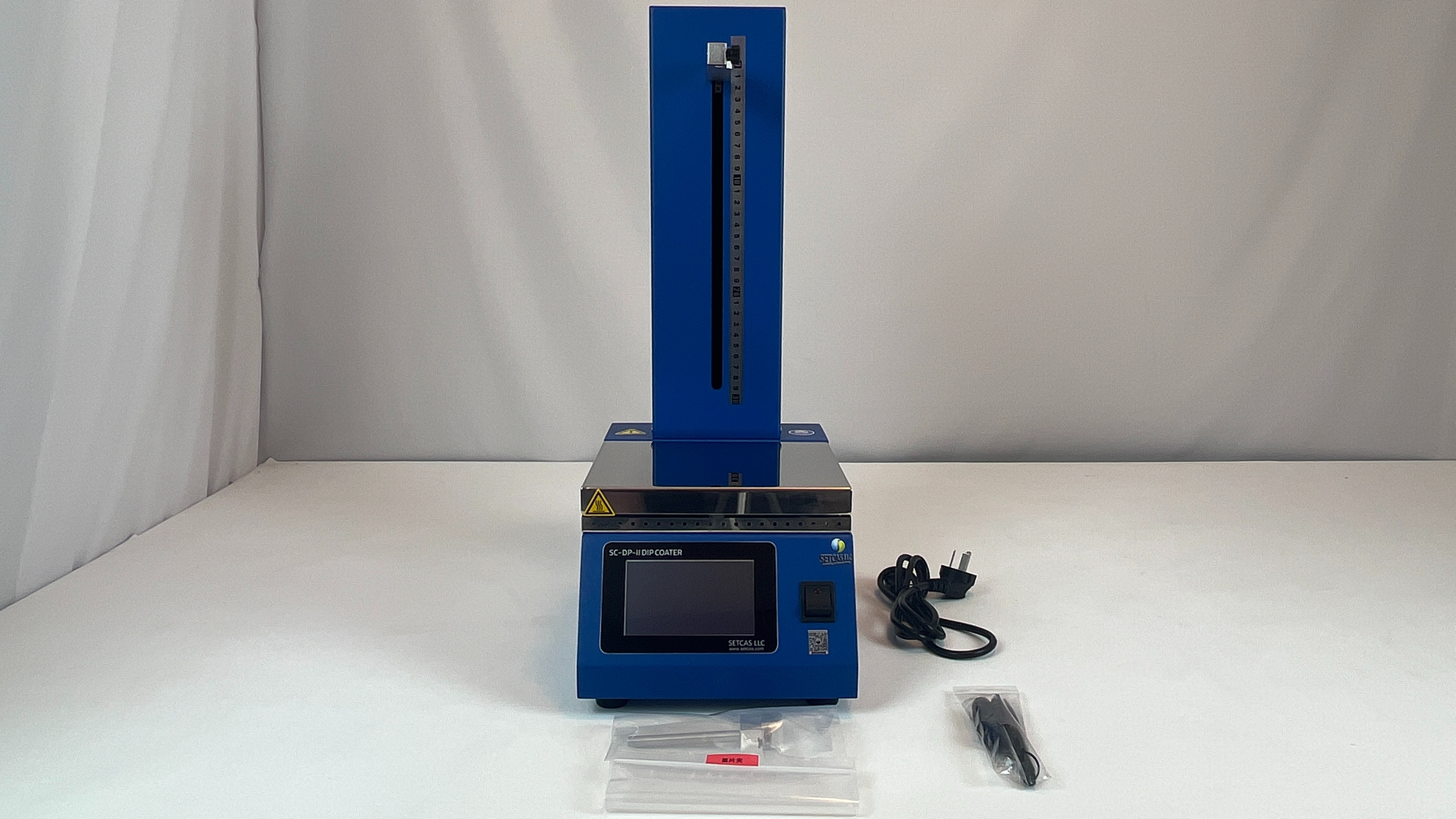

SETCAS SC-DP-I Dip Coater Table type of Dip Coater
SC-DP Series
Precision Dip Coater
Ultra-Precise Speed Control & Uniform Heating.
This precision dipping & coating equipment features ultra-precise speed control (1–20,000 μm/s, 1 μm resolution) for fast, accurate dipping/lifting. Equipped with upper/lower limit switches for high-speed operational safety.
Boasts 4.3-inch true-color touchscreen (real-time position/cycle display), 150 mm indexed sample positioning stroke, and 20 N linear thrust (≤0.5% control accuracy). Supports room temp–200°C uniform heating and multi-cycle operations with customizable parameters: immersion time (0–9,999s), coating cycles (1–9,999), inter-coating interval (0–9,999s).
Choose Your Model
Select the configuration that best fits your experimental needs.

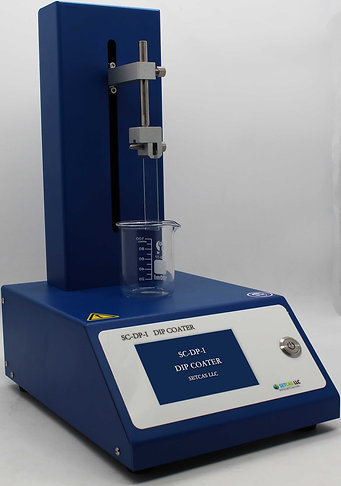

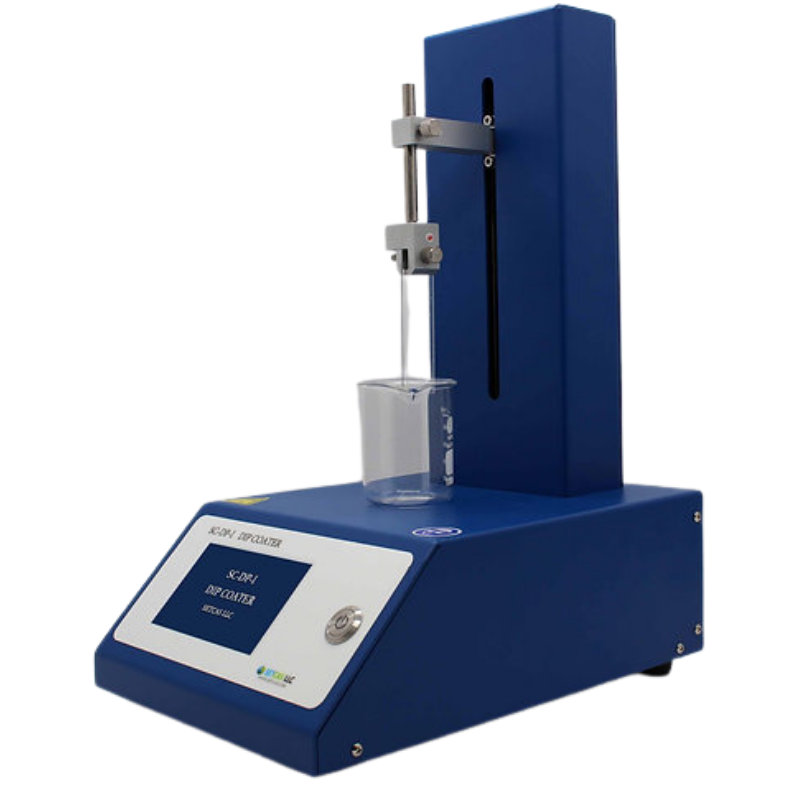

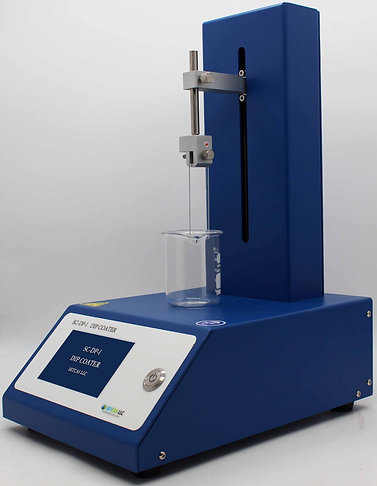

SC-DP-I
Standard Precision Version- Stroke: 150 mm indexed positioning.
- Speed: 1 - 20,000 μm/s.
- Resolution: 1 μm/s.
- Control: 4.3-inch true-color touchscreen.
- Thrust: 20N (Accuracy ≤0.5%).

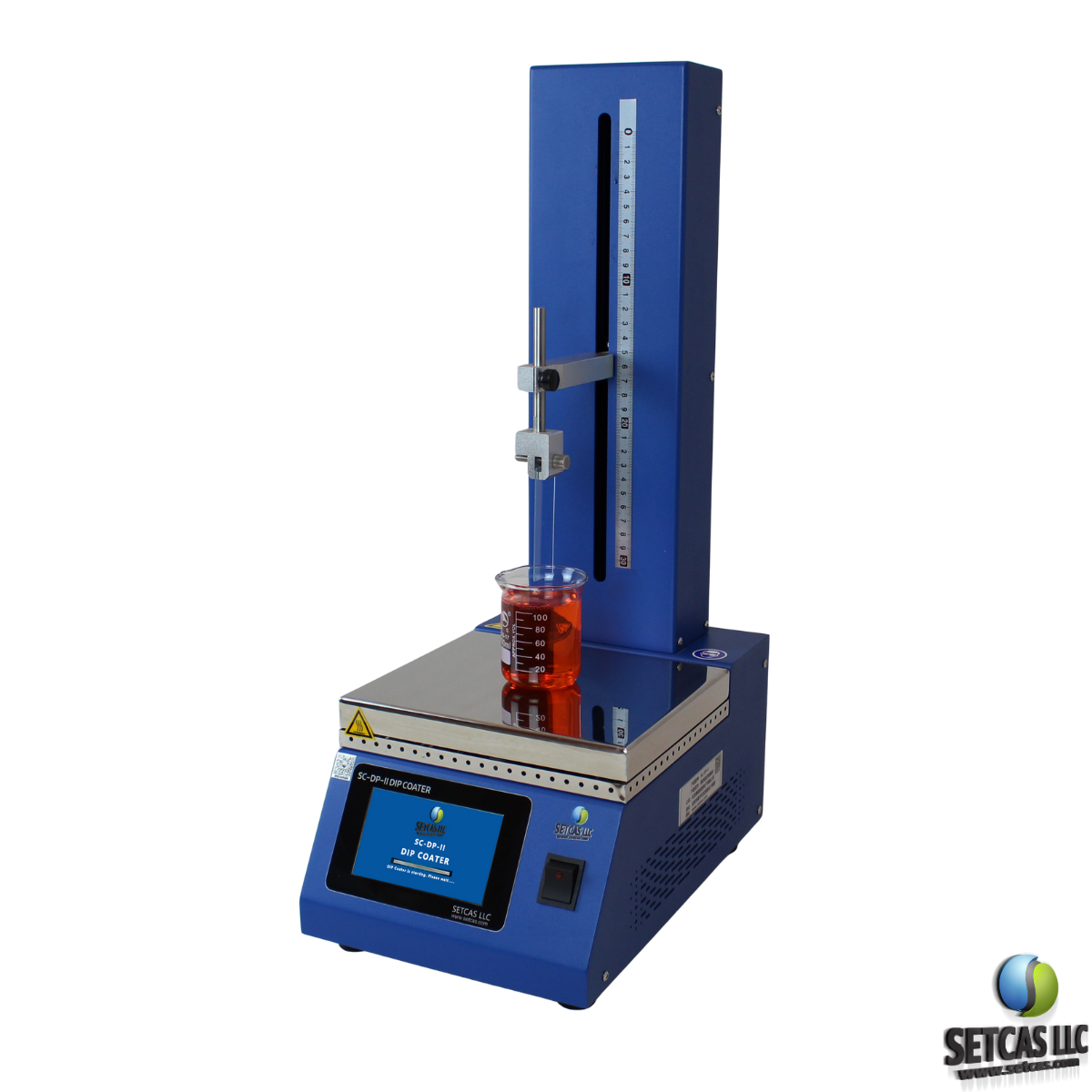

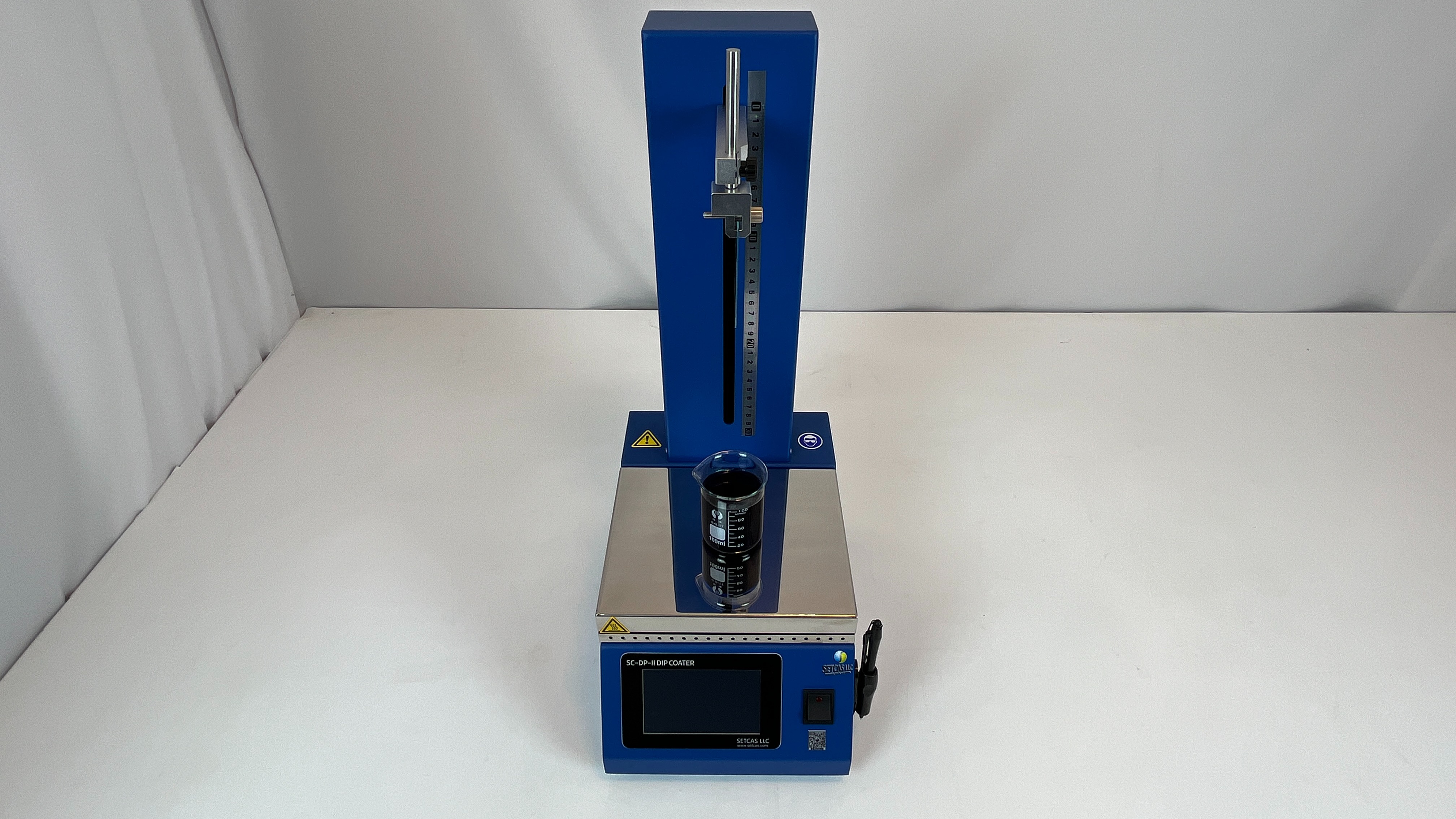

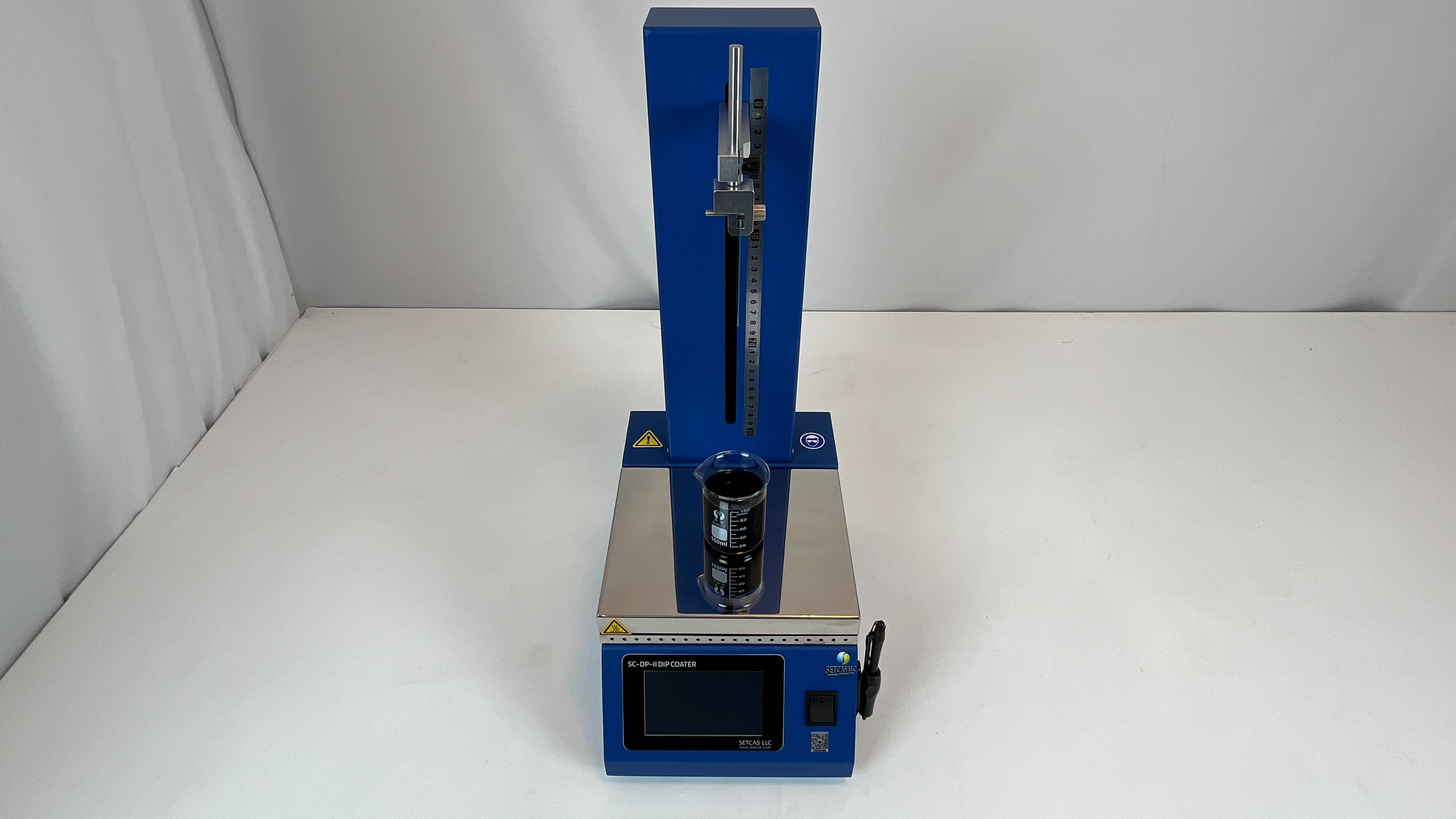

SC-DP-II
Heating Dip Coater- Heating: Room temperature to 200°C.
- All features of SC-DP-I Included.
- Multi-cycle: Customizable timing parameters.
- Safety: Upper/Lower limit switches.
- Accuracy: High precision thermal control.
Technical Specifications
Detailed comparison of technical parameters.
| Parameters | SC-DP-I (Standard) | SC-DP-II (Heating) |
|---|---|---|
| Sample Injection Stroke | 150 mm | 150 mm |
| Lifting Speed Range | 1 μm/s – 20,000 μm/s | 1 μm/s – 20,000 μm/s |
| Lifting Resolution | 1 μm/s | 1 μm/s |
| Rated Linear Thrust | 20N | 20N |
| Control Accuracy | ≤ 0.5% | ≤ 0.5% |
| Impregnation Time | 0 - 9,999 s | 0 - 9,999 s |
| Coating Cycles | 1 - 9,999 Cycles | 1 - 9,999 Cycles |
| Coating Interval | 0 - 9,999 s | 0 - 9,999 s |
| Temperature Range | N/A | Room temperature - 200°C |
| Control Interface | 4.3-inch true-color touchscreen | 4.3-inch true-color touchscreen |
| Warranty Period | 1 Year | 1 Year |
CE Declaration
Verified by Shenzhen Shuofeng Testing
