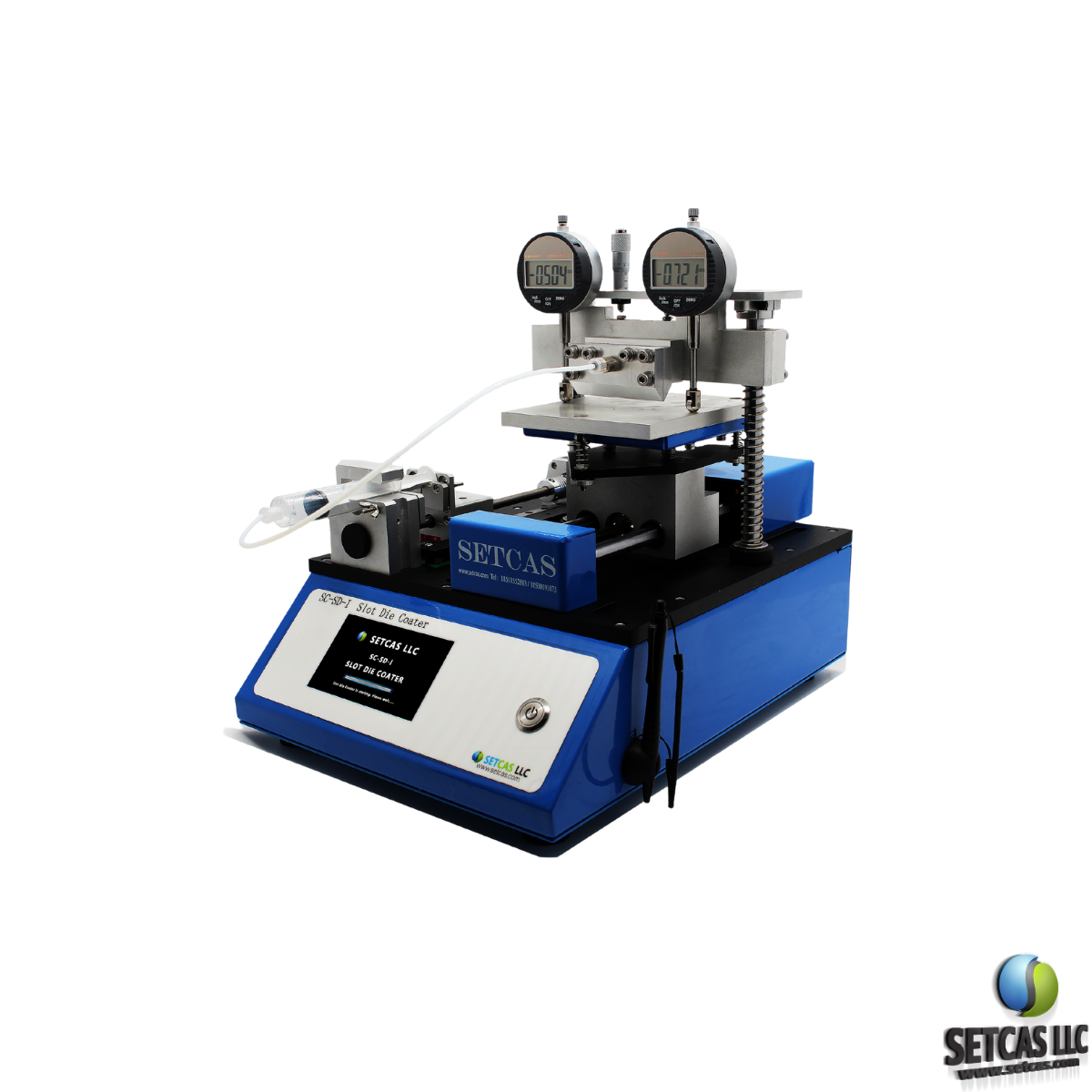

SETCAS SC-SD-I Slot Die Coater coating machine Factory direct sales
SC-SD-I
Slot Die Coater
(Heating)
Precision Slot Die Coating with Adjustable Width & Heating.
This precision Slot Die Coater (SC-SD-I) features an adjustable coating width (25–50 mm, 100 μm shim thickness) and stage heating capability from room temperature to 200°C, supporting a coating thickness range of 1–1000 μm.
Boasts precise speed control: stage movement (100 μm/s – 50 mm/s) and syringe pump speed (12 μm/s – 5 mm/s). Equipped with a 100 mm stage travel length, 13 mm max head-substrate distance, and 20 N linear thrust (≤0.5% control accuracy). Powered by DC 24V with a compact design (360×280×190 mm) and lightweight build (<10kg), it fits perfectly on a horizontal desktop. Ideal for precision coating R&D and small-batch production, backed by a 1-year warranty.
Technical Specifications
Detailed technical parameters.
| Coating & Heating Parameters | |
|---|---|
| Slot-Die Head Coating Width | 50 mm (maximum) |
| Slot-Die Shim Thickness | 100 μm |
| Coating Thickness Range | 1 - 1000 μm |
| Hotplate Temperature | 200 °C (maximum) |
| Stage Travel Length | 100 mm (maximum) |
| Max Head to Substrate Dist. | 13 mm |
| Speed Control | |
| Stage Speed Range | 100 μm/s – 50 mm/s |
| Syringe Speed Range | 12 μm/s – 5 mm/s |
| Physical & Electrical | |
| Power Supply | DC 24 V, 6.2 A (via AC 100-240v adapter) |
| Dimensions | 360 mm (D) × 280 mm (W) × 190 mm (H) |
| Shipping Weight | < 10 kg |
| Installation Method | Place on a horizontal desktop |
| Operating Environment | |
| Ambient Temperature | 0–40 °C |
| Relative Humidity | < 85% |
| Warranty | 1 Year |
| Origin | R&D by American team, production/assembly in Beijing |

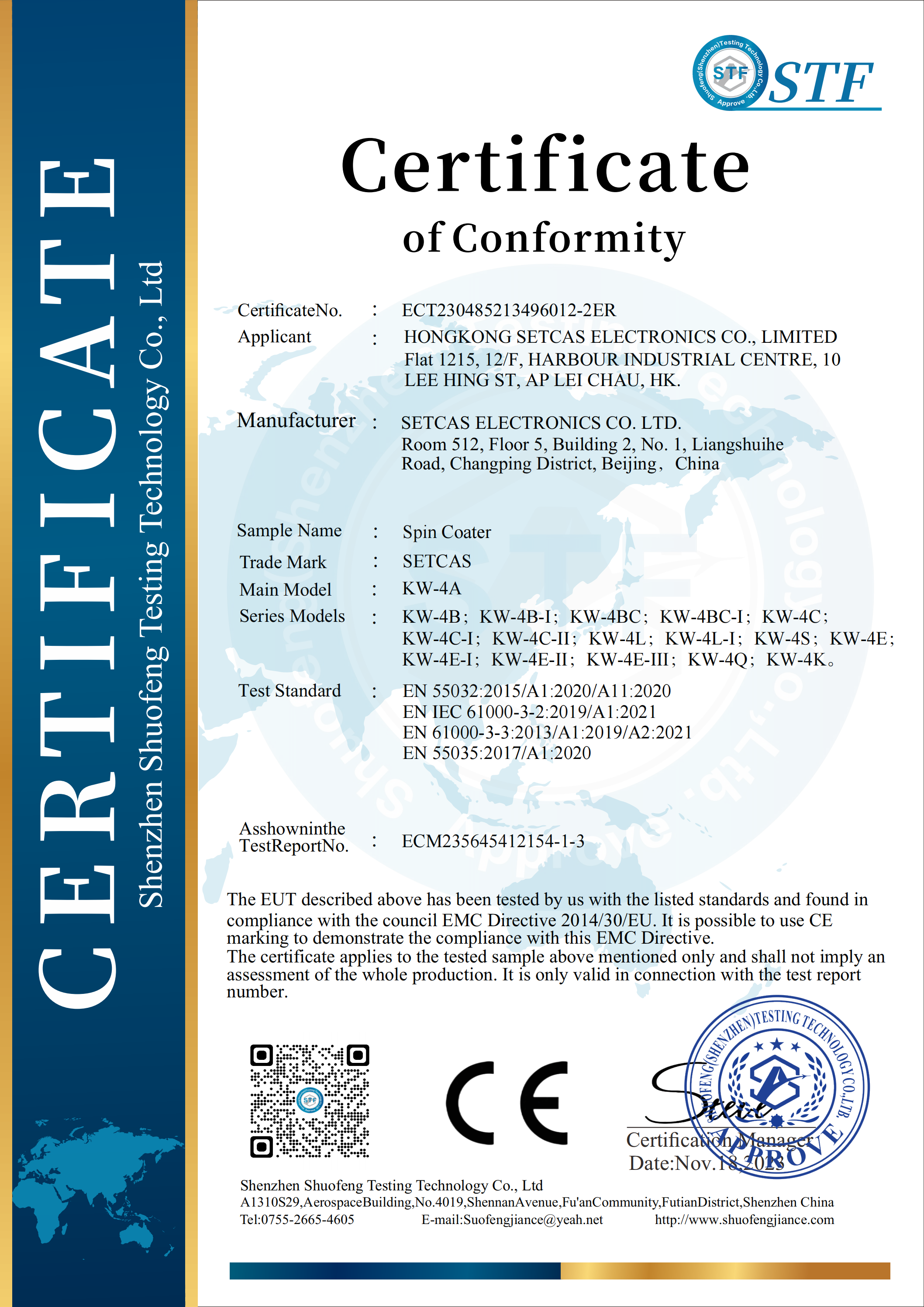

CE Declaration
Verified by Shenzhen Shuofeng Testing
