SETCAS KW-4C Spin Coater Factory direct sales Including vacuum pump and chucks



KW-4C and KW-4C-I Spin Coater

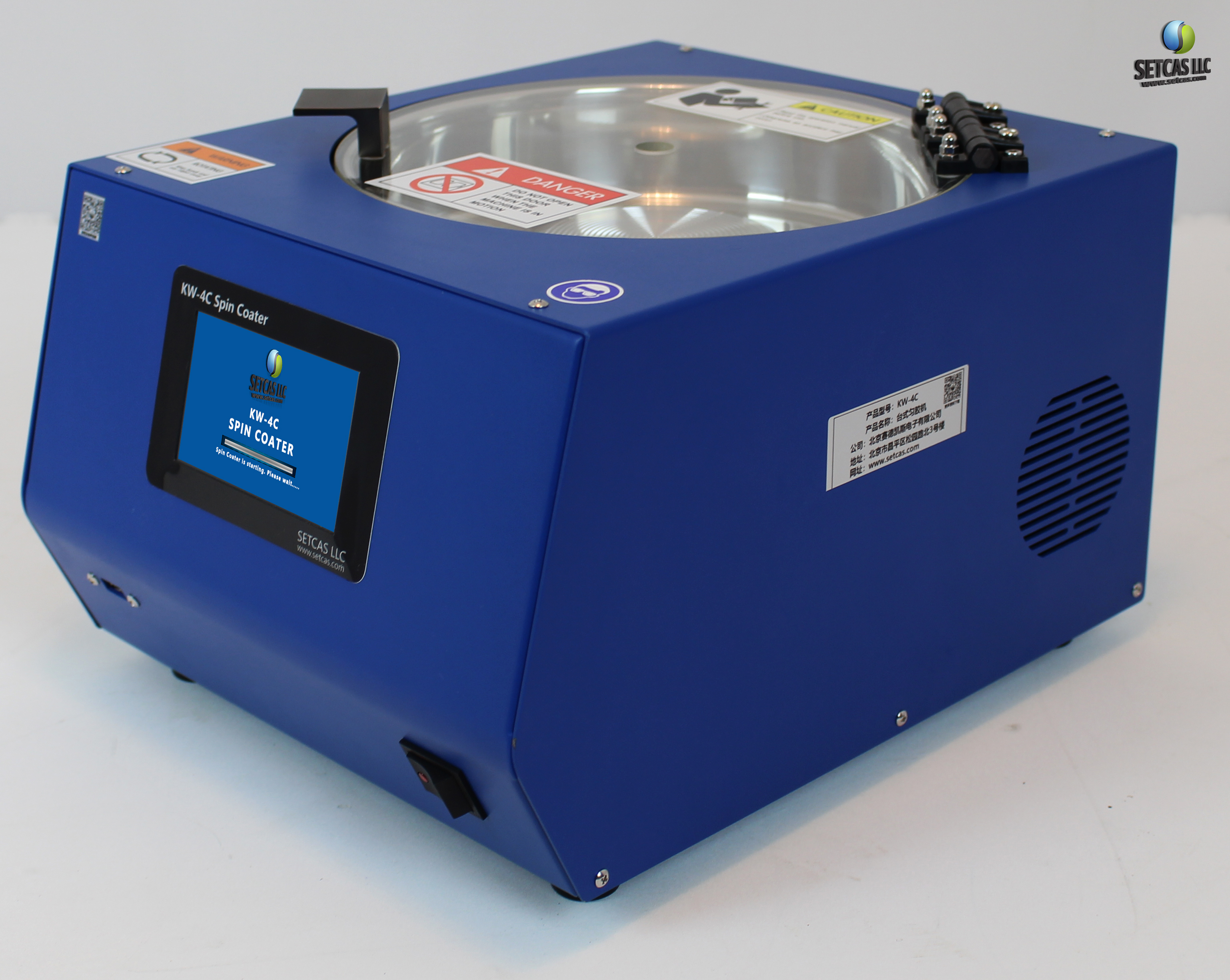

KW-4C glue homogenizing machine

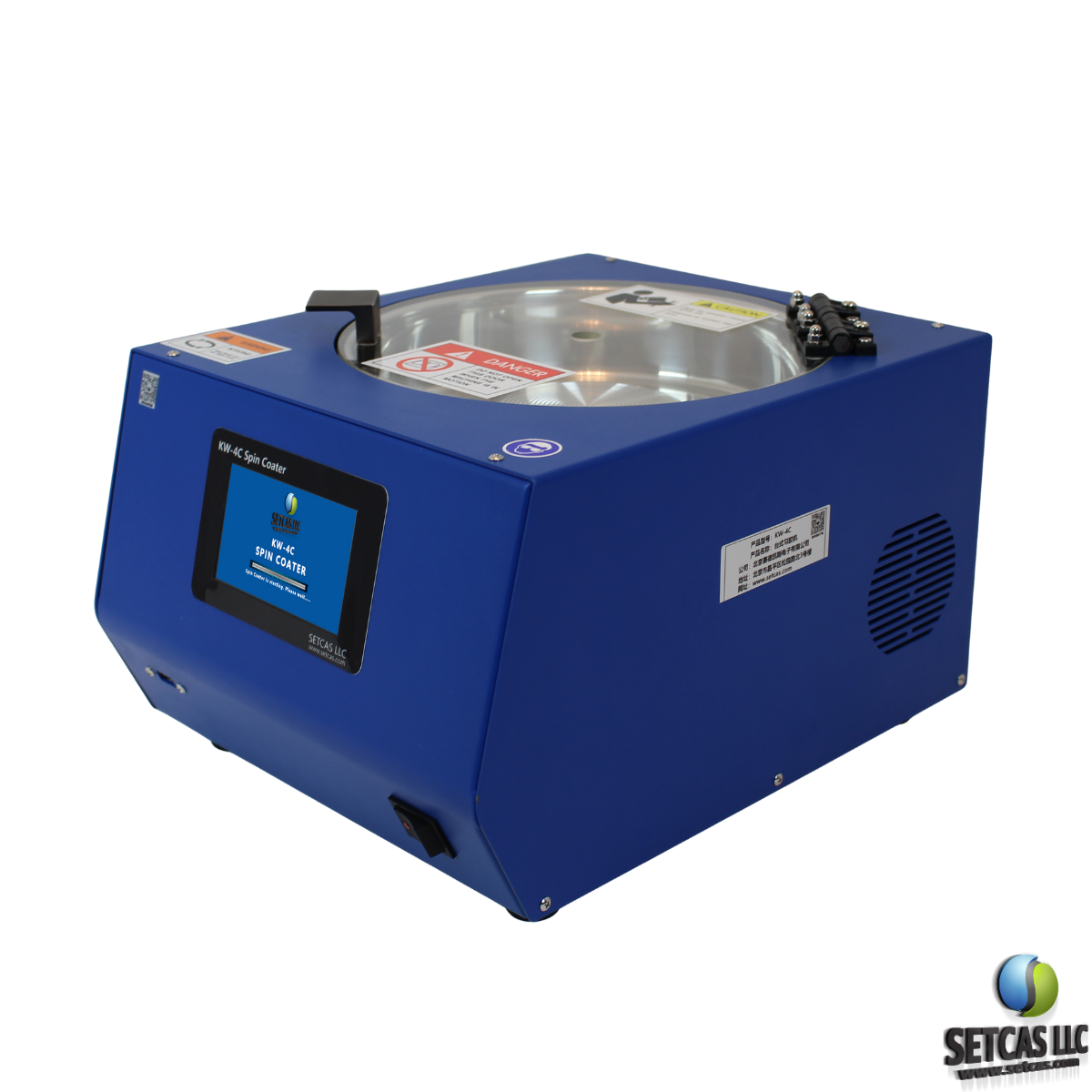

KW-4C glue homogenizing machine

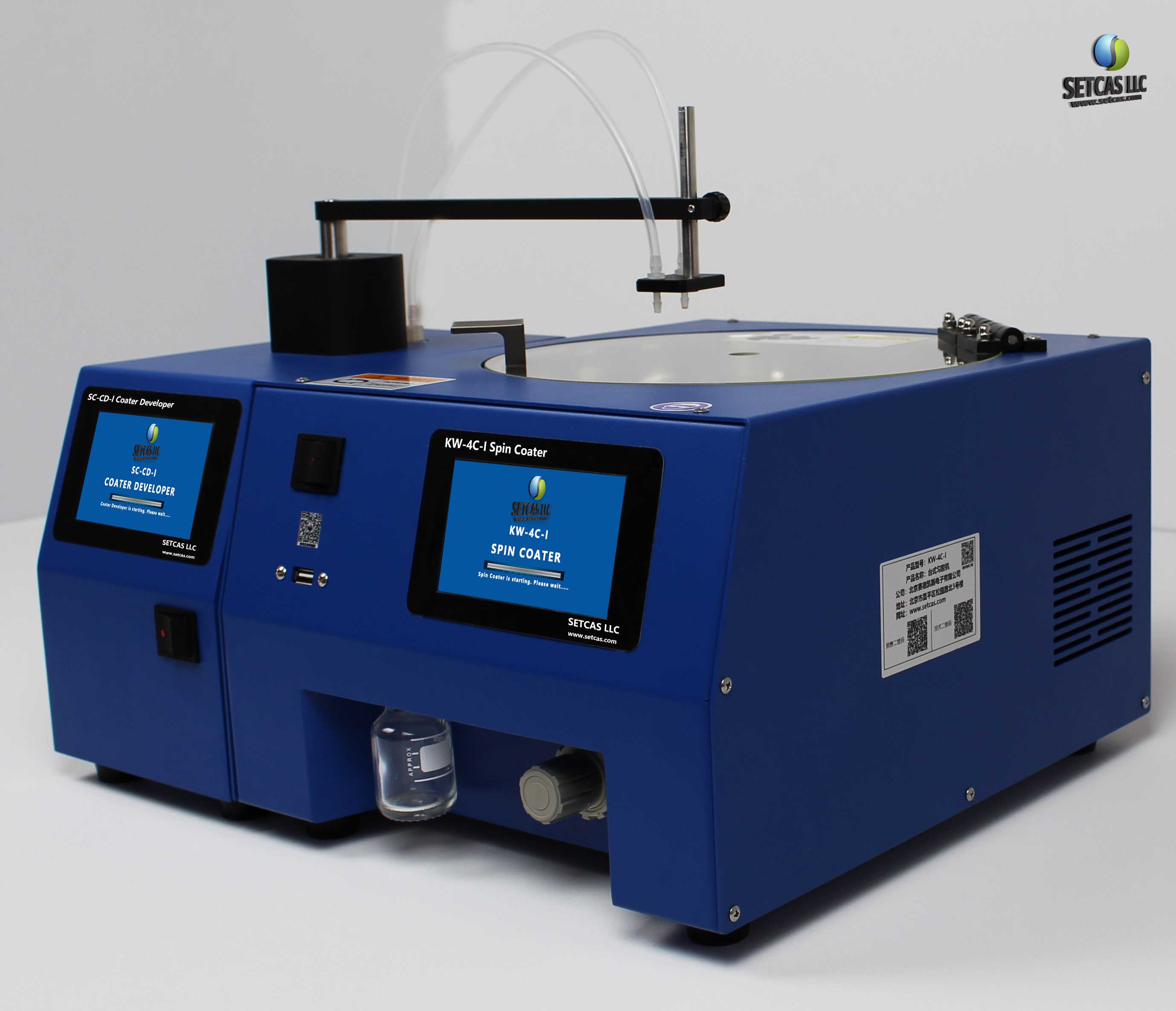

KW-4C-I glue homogenizing machine

KW-4C-I glue homogenizing machine

1. Anti-flying piece protection and alarm

2. Anti-adhesive protection and alarm

3. Machine can be reversed

4. Power-down protection function

5.Acceleration adjustable

5. Cover protection (Model : KW-4C-I)



Precision

Index



Substrate size

5-150mm



Speed range

1-10000RPM/1-12000RPM(Model : KW-4C-I)



Speed accuracy

1RPM



Speed stability

±0.1%



Acceleration range

1-10000RPM/S



Glue uniformity

±1%



Control Signal

Index



HMI

4.3” touch screen



Communication Interface

Connectable with wireless keyboard

The machine can be placed in the glove box and able to remote operate in a distance



Rotate Direction

Support forward



Stylus Pen

BAMBOO Resistance pen (standard)



Vacuum pump

AP-550VOil-free pump/FY oil pump



Program mode

Parameter



Date Setting

Unlimited group data10 speeds per group (standard)



Each Time

0-10000 min



Data Storage

Unlimited group data



Electrical parameters

Index



Spin Coater AC power port

AC100-250V



Vacuum pump AC power port

AC220V(standard) AC110V(optional)



Spin Coater power

200W



Vacuum pump power

350W



Vacuum pump pumping speed

≥60L/MIN



Mechanical Dimensions

Parameter



Spin Coater size

210mm(W)X220mm(D)X160mm(H)



Spin Coater weight

10KG



Pump weight

9KG



External factor

Parameter



Ambient temperature

0-40℃



Relatively humidity

< 85%



Placed on the table

The level of the machine can be adjusted by the built-in spirit level



Technical support

Index



Warranty

1 year
