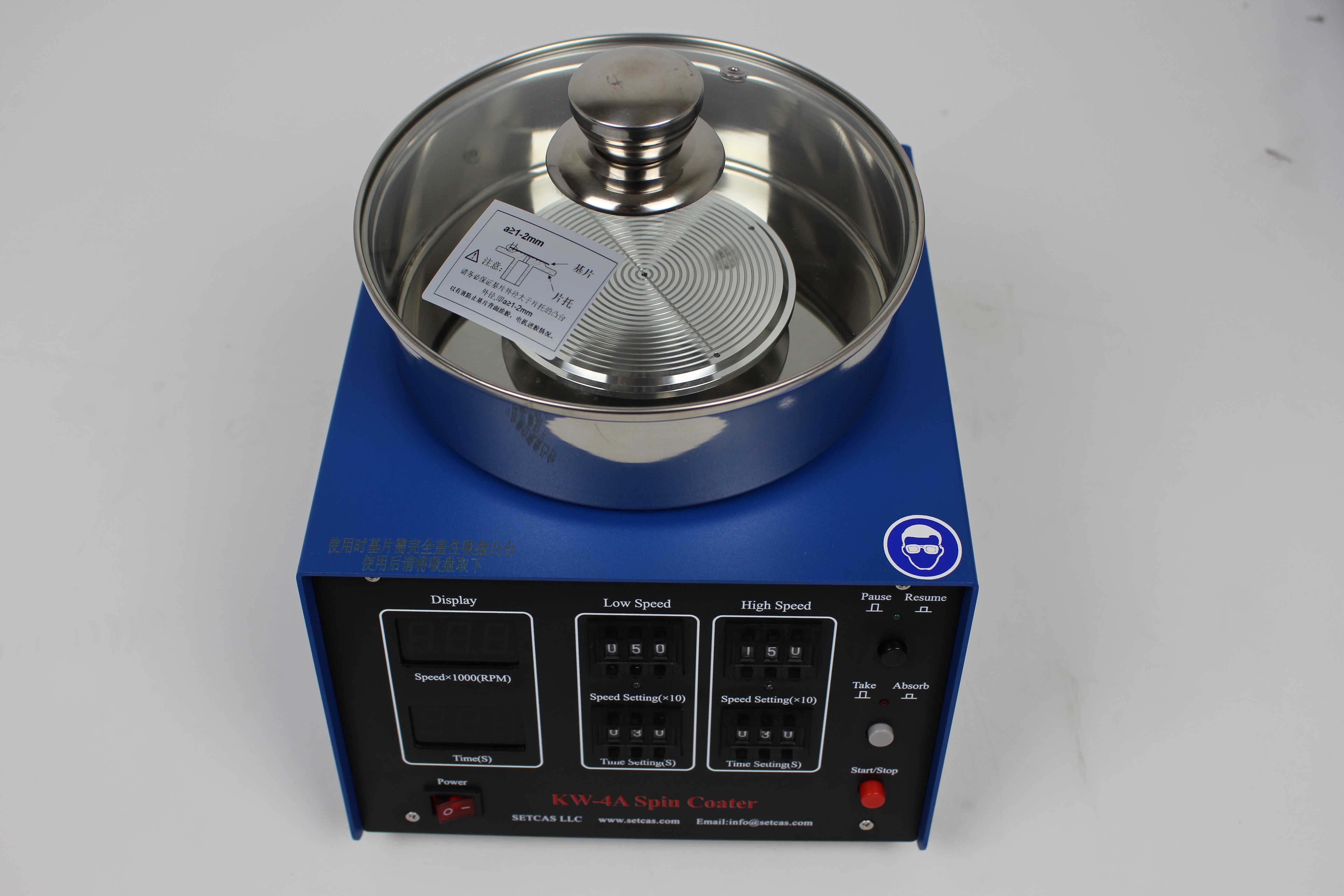

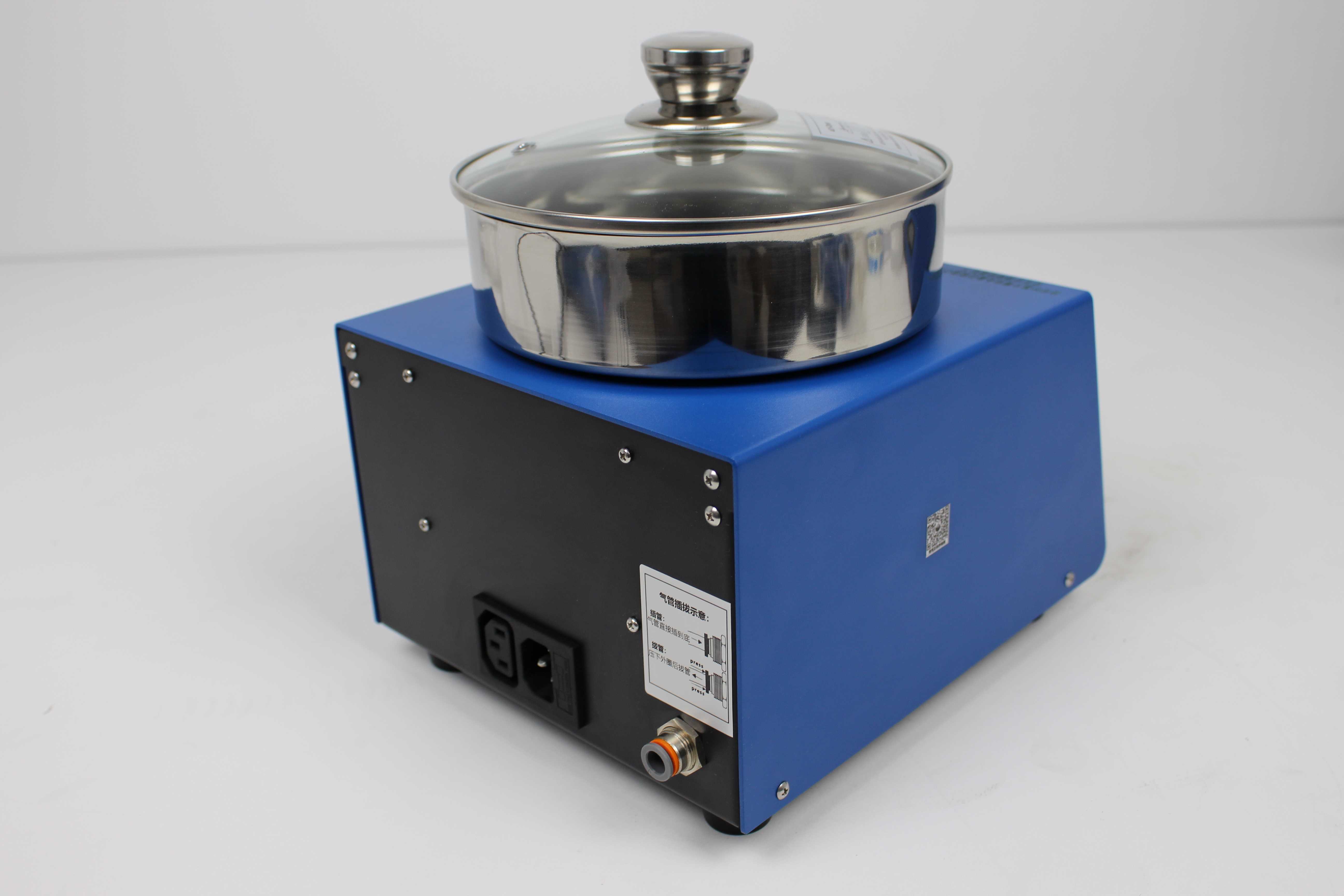

SETCAS KW-4A Spin Coater（USD2000）
KW-4A Series
KW-4A（Manual）
KW-4A（Manual）
Spin Coater
Precision Spin Coater with Intuitive Operation, Safety Protection & Enhanced Durability
$2,000
In stock for priority dispatch
Vacuum-free SETCAS spin coaters are ideal for complex, high precision spin coating. These robust and affordable instruments are trusted by academics and researchers worldwide. The KW-4A Spin Coater relies on a specially designed anti-intrusion chuck that accommodates substrates from 5mm to 100mm and is optimized for excellent film quality.
Fully Featured for Junior R&D Projects and Small-Batch Coating Needs! Robust and Reliable Performance.
Integrated Pump
500 - 8,500 RPM
0 - 999 seconds
Chemical-resistant
Technical Specifications
| Coating Performance | |
|---|---|
| Substrate Size | 5 mm – 100 mm (4 inches) |
| Chuck Type | Anti-intrusion chucks |
| Speed Range | 500 – 8,500 rpm |
| Spin Time | 0 – 999 s |
| Uniformity | ± 1 % |
| Control & Display | |
| Control Method | Keypad input |
| Display | Dual LED (Speed & Countdown) |
| Dimensions & Weight | |
| Size (Coater) | 210(W) × 220(D) × 160(H) mm |
| Net Weight | Coater: 10 kg |
| Warranty | 1 year |

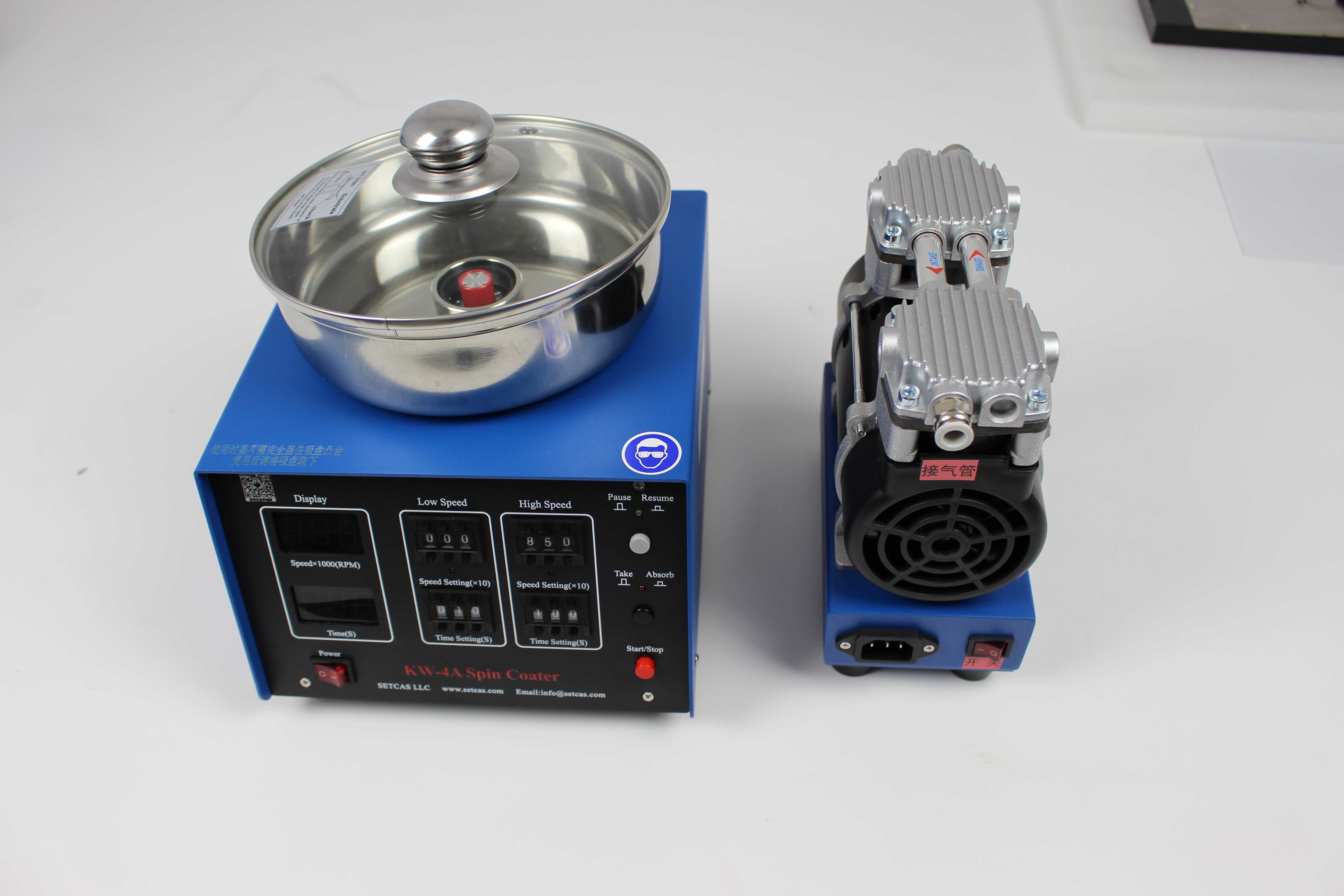

Vacuum Pump Specifications
| Oil-free Vacuum Pump Parameters | |
|---|---|
| Voltage | Standard 220VAC, 50Hz; Optional 110VAC, 60Hz |
| Power | 180W |
| Pumping Speed | ≥50 L/min |
| Max Vacuum | -85 kPa |
| Noise Level | ≤55 dB |
| Net Weight | 4.5 kg |
| Dimensions | 185(L) × 100(W) × 210(H) mm |
Dimensional Drawing
Unit: mm
CE Declaration
Verified by Shenzhen Shuofeng Testing
Request Quote & Contact Us
香港賽德凱斯電子有限公司
HONG KONG SETCAS Electronics Co., Ltd
John Tao Jiang (姜 涛)
Director of Sales
WhatsApp +852 6364 9296
WeChat +86 18518552883
Email hk_setcas@163.com
Hoye Haiying Lin (林海莹)
Manager of Sales
WhatsApp +852 6994 7885
WeChat +86 19518750528
Email hoyelam@setcas.hk
Benny YangLei (雷 扬)
Sales Specialist
WhatsApp +852 6945 6904
WeChat 85269456904
Email sales02@setcas.hk
Visit Our Online Stores
Price：
$
2000.00
Key Features:
1.Take/Absorb button controls the start and stop of the pump, reduce the pump noise pollution and extend the pump life.
2.With countdown display function: accurate timing, improve repeatability, and ensure the consistency of film thickness in multiple batches.
3.Take/Absorb button and Start/Stop button interlock, prevent the substrate flying out.
4.Prevent the process chemicals and solvents contact with the motor.
5.Support two user-defined program steps for each recipe.
1.Take/Absorb button controls the start and stop of the pump, reduce the pump noise pollution and extend the pump life.
2.With countdown display function: accurate timing, improve repeatability, and ensure the consistency of film thickness in multiple batches.
3.Take/Absorb button and Start/Stop button interlock, prevent the substrate flying out.
4.Prevent the process chemicals and solvents contact with the motor.
5.Support two user-defined program steps for each recipe.
