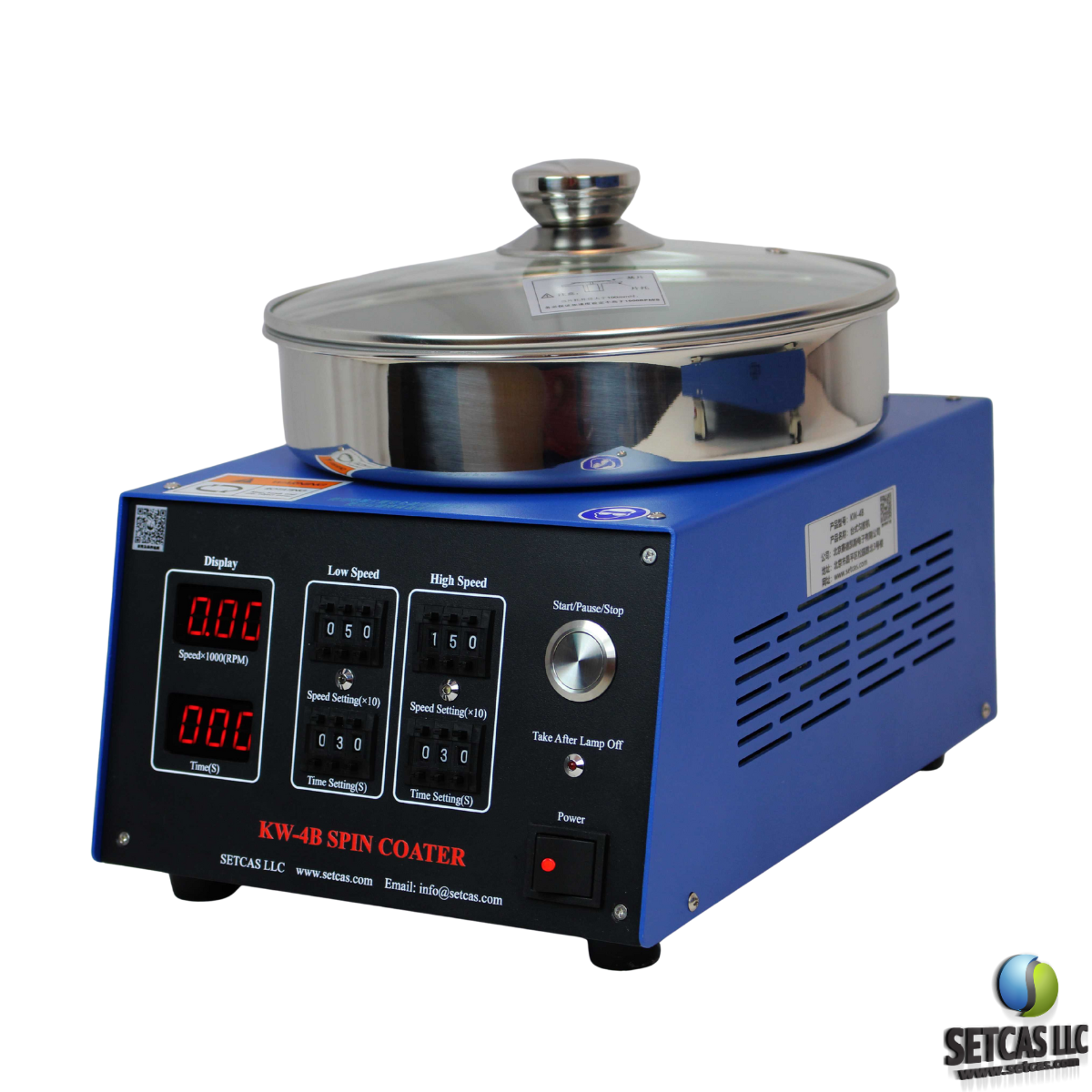

SETCAS KW-4B Spin Coater（USD3500）
KW-4B（Manual）
Spin Coater
Enhanced Precision, Dual-Step Programming & Motor Protection
$2,000
The SETCAS KW-4B Spin Coater builds upon the reliability of the KW-4A with advanced features designed for rigorous research environments. It introduces a wider speed range up to 10,000 RPM and intelligent process control, making it ideal for complex, high-precision spin coating applications.
Motor Protection: Specially sealed structure prevents process chemicals and solvents from contacting the motor, significantly extending equipment lifespan.
Dual-Step Programming: Supports two user-defined program steps for each recipe, allowing for more complex coating protocols (e.g., spread cycle followed by spin cycle).
Precision Control: Set speed and time directly with the keypad for convenient and accurate parameter adjustments.
One-Button Operation: Single button control for spin start/pause/reset and vacuum pump on/off, simplifying the workflow.
Technical Specifications (KW-4B)
| Coating Performance | |
|---|---|
| Substrate Size | 5 mm – 120 mm (5 inches) |
| Chuck Type | Specially designed anti-intrusion chucks |
| Speed Range | 50 – 10,000 rpm |
| Spin Time | 0s to 999s |
| Uniformity | ± 1 % |
| Control & Display | |
| Control Method | Set speed and time with the keypad |
| Display | Dual LED (Speed display, Countdown time display) |
| Speed Stability | ±1 rpm |
| Electrical & Environment | |
| Operating Voltage (Coater) | AC 100-250V, single phase, 50/60Hz |
| Power | Coater: 200W / Pump: 180W |
| Sound Level | ≤55dB |
| Ambient Temperature | 0 - 40°C |
| Relative Humidity | < 85% |
| Dimensions & Weight | |
| Dimensions (Coater) | 210 mm (W) × 220 mm (D) × 160 mm (H) |
| Net Weight (Coater) | 10 kg |
| Warranty | 1 Year |
Vacuum Pump Specifications
| Oil-free Vacuum Pump Parameters | |
|---|---|
| Operating Voltage | AC220V (Standard) / AC110V (Optional) |
| Power | 180W |
| Pumping Speed | ≥60 L/min |
| Max Vacuum | -85 kPa |
| Net Weight | 4.5 kg |
| Dimensions | 185 mm (L) × 100 mm (W) × 210 mm (H) |
Dimensional Drawing
Unit: mm
CE Declaration
Verified by Shenzhen Shuofeng Testing
Request Quote & Contact Us
香港賽德凱斯電子有限公司
HONG KONG SETCAS Electronics Co., Ltd
Visit Our Online Stores
2.Support two user-defined program steps for each recipe.
3.Set speed and time with the keypad, convenient and accurate.
4.Single button control spin start/ pause/ reset and vacuum pump on/off.
