SETCAS KW-4BC Spin Coater Factory direct sales Including vacuum pump and chucks
KW-4BC
Touch Screen
Spin Coater
Precise, Safe, and Reliable Coating Solutions for Research & Industry.
Experience high-performance spin coating with our versatile, user-friendly instrument—engineered for precision and reliability!
Enjoy adjustable acceleration (10-10000 RPM/S) and adsorption force, paired with a wide speed range (50-10000 RPM) and real-time display for effortless operation.
Benefit from all-around safety protection: anti-fly function with alarm safeguards substrates from misoperation damage, while the anti-glue intrusion module and anti-adhesive protection with alarm extend motor life and ensure consistent performance.
The KW-4BC model features a 4.3-inch touch screen for intuitive control, plus smart perks like automatic film removal/pick-up alerts and unlimited data storage (10 speed settings per group). Customize your setup with optional extras: two-way automatic glue coating/development modules for streamlined workflows, and disposable pot liners for hassle-free post-coating cleanup—perfect for R&D labs and small-batch production!
Choose Your Model
Select the configuration that best fits your experimental needs.

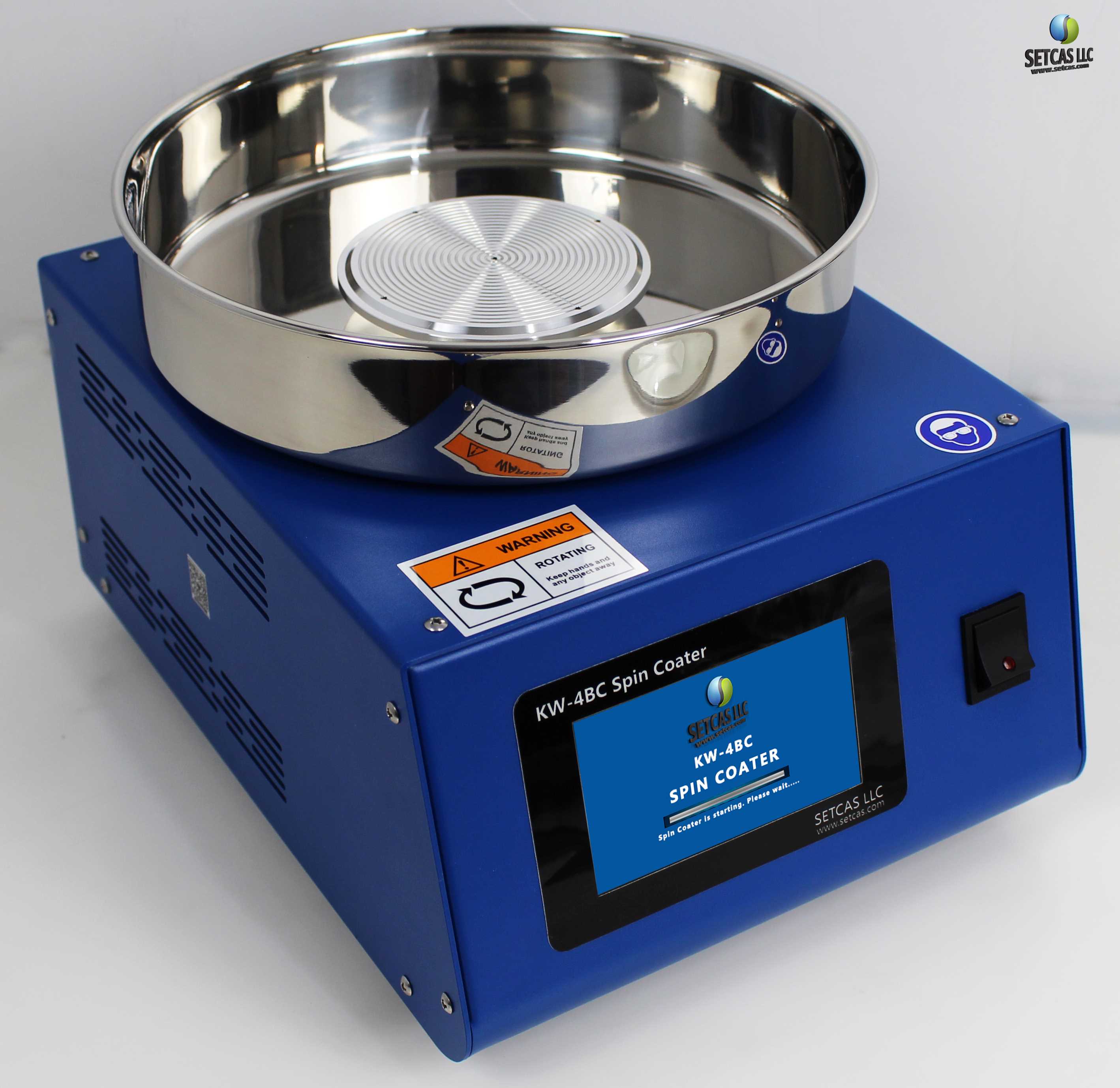

KW-4BC
Standard Touch Screen Version- 4.3-inch Touch Screen: Human-machine interface for intuitive control.
- Safety Protection: Prevent anti-flying piece protection and alarm.
- Anti-Adhesive: Prevent anti-adhesive protection and alarm.
- Smart Alert: Automatic pick-up alert function.
- Unlimited Data: Store unlimited group data, each group of 10 speeds.

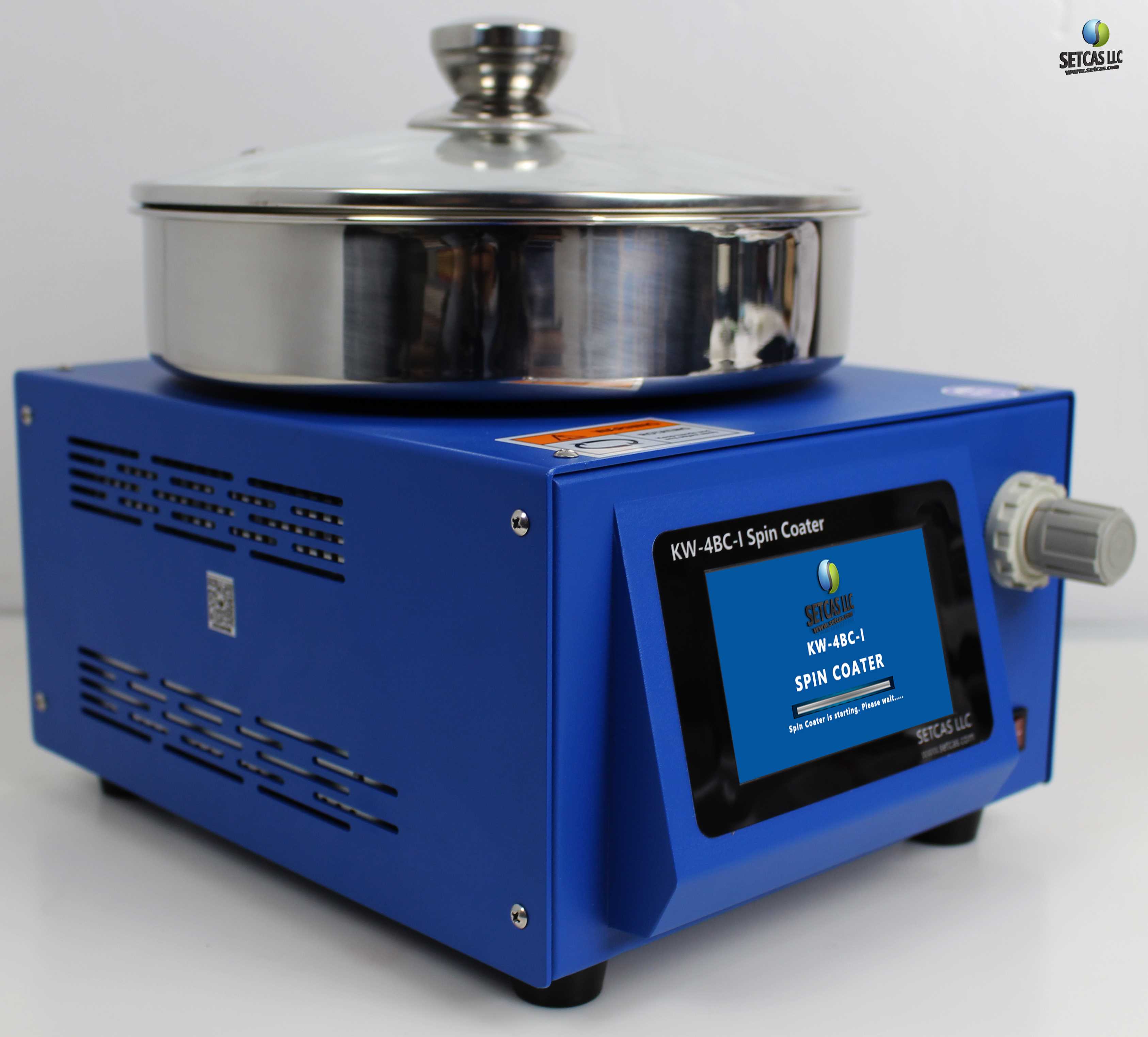

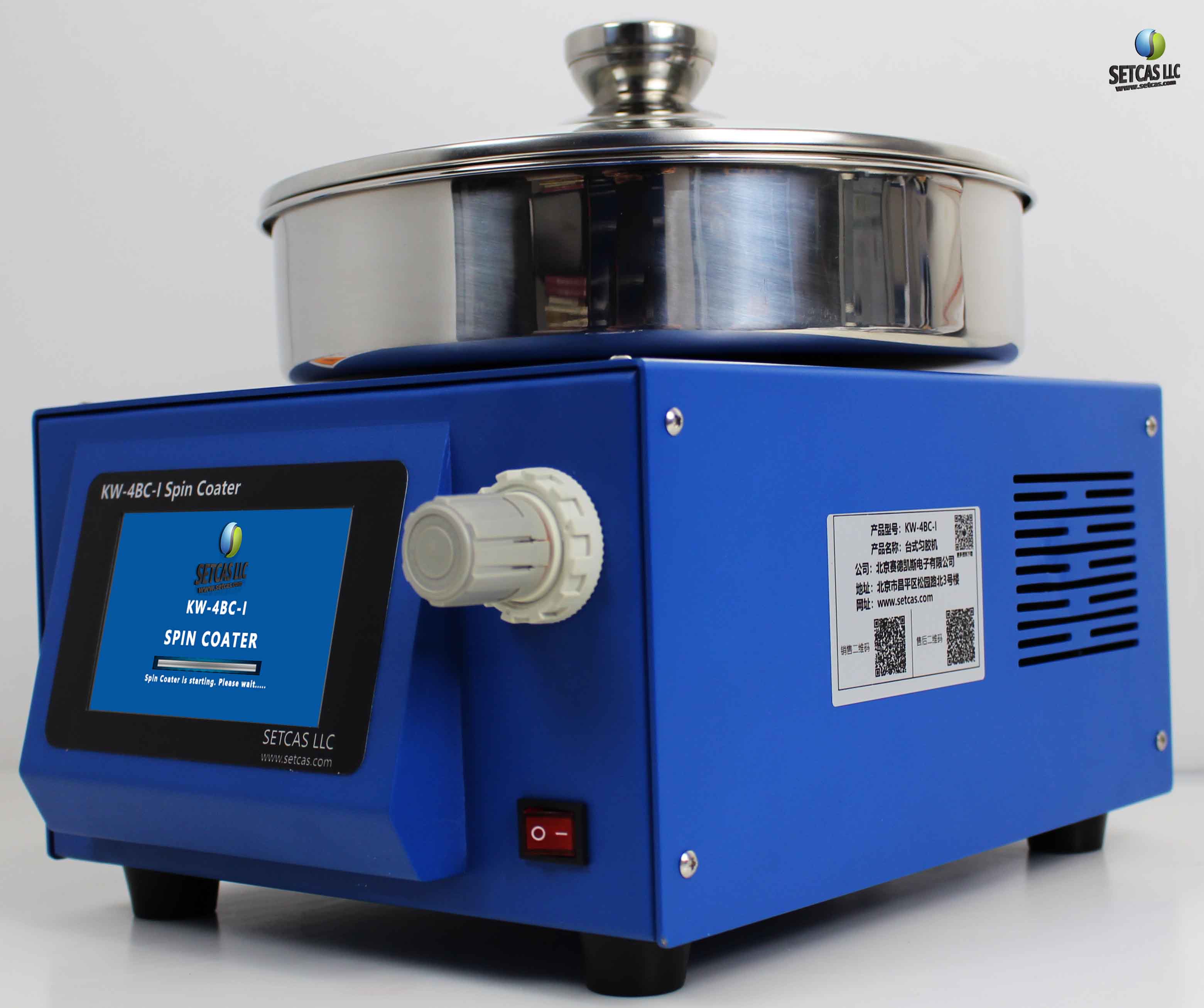

KW-4BC-I
Intelligent Enhanced Version- All features of KW-4BC, PLUS:
- Adjustable Acceleration: Range 10-10,000 RPM/S with real-time display.
- Adjustable Adsorption: Control vacuum force with real-time feedback.
- Anti-Glue Intrusion: Module effectively solves glue intrusion, extending motor life.

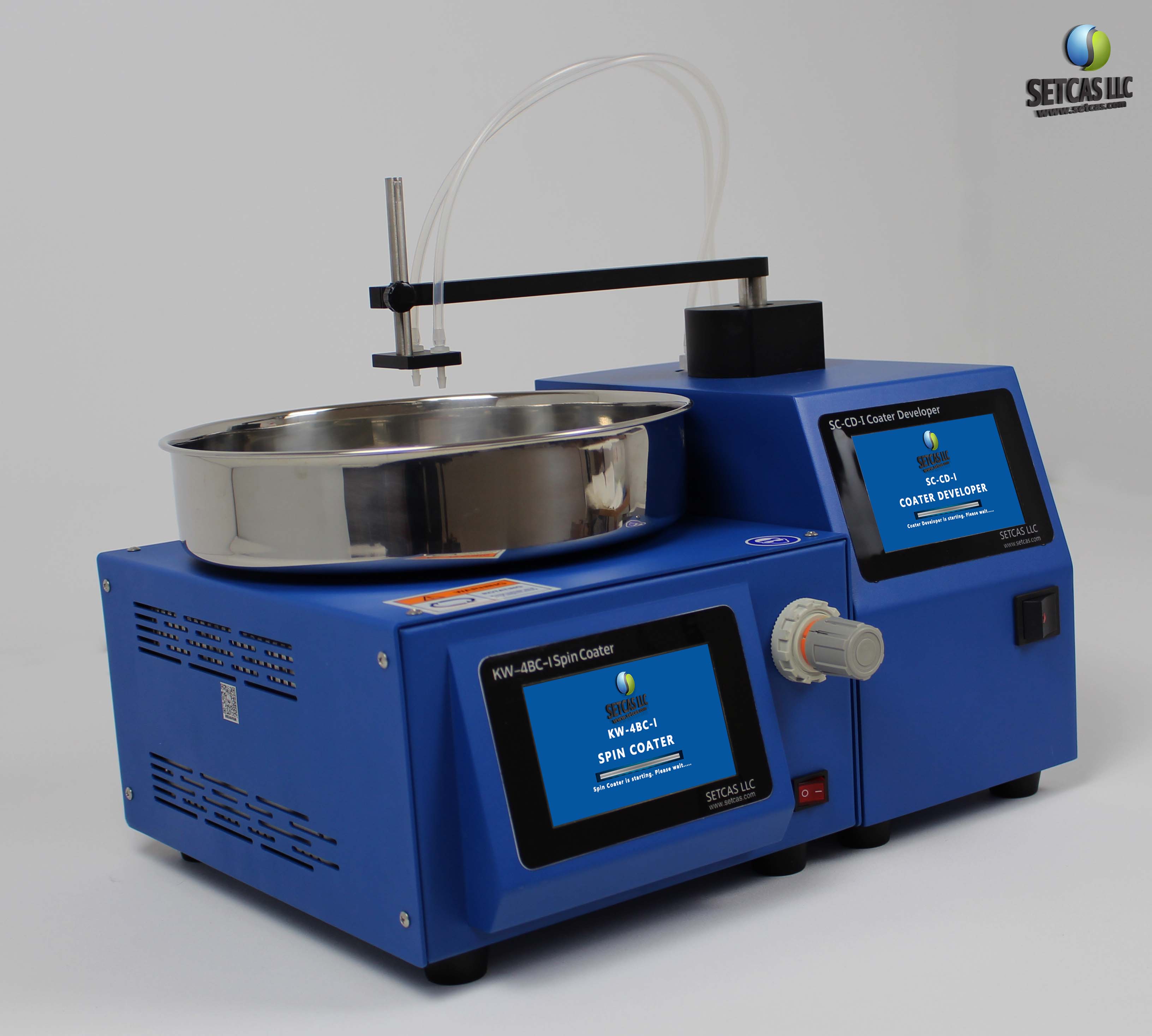

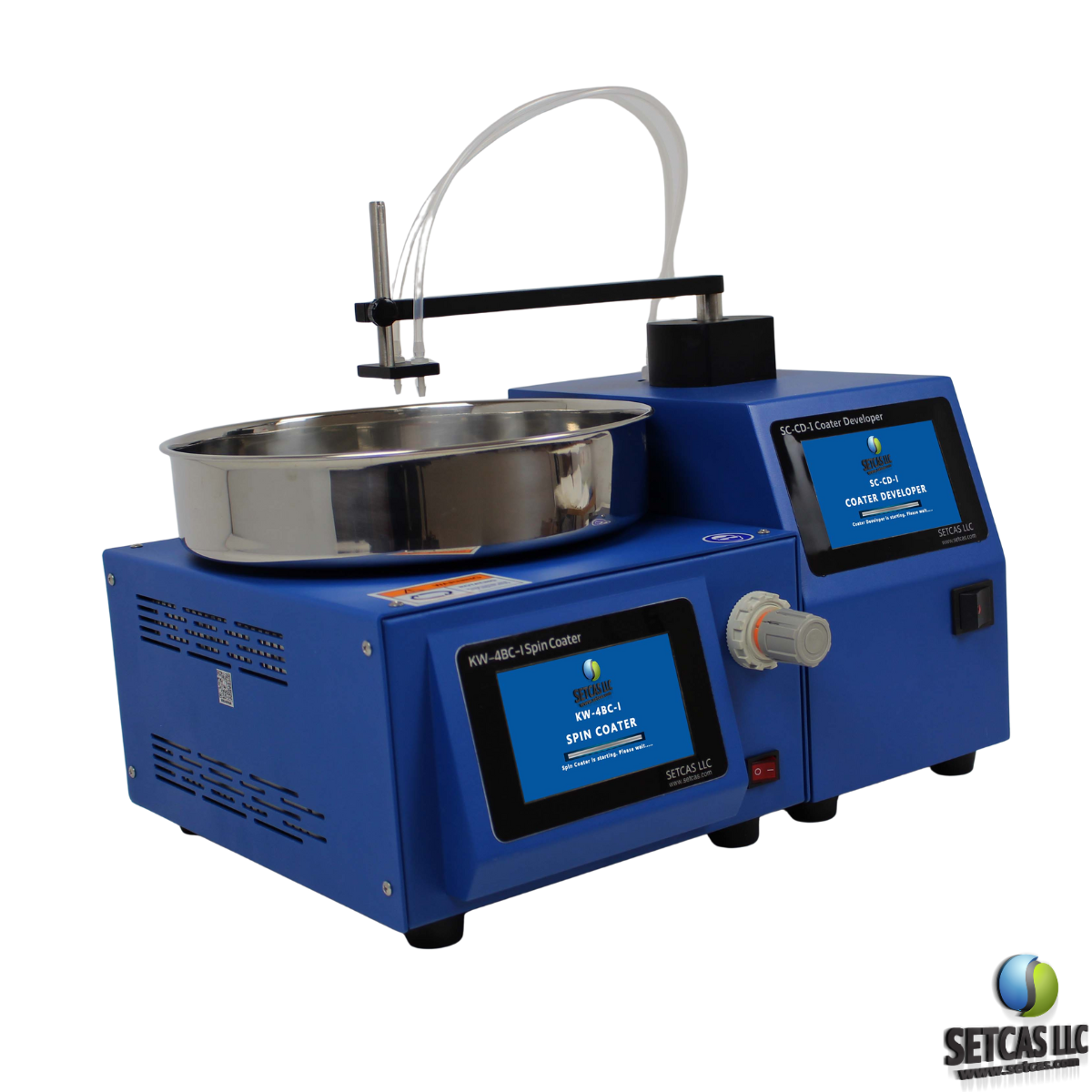

- Optional Automation: Supports optional two-way automatic glue coating/development modules.
- Easy Cleaning: Optional disposable pot lining for convenient waste liquid cleanup.
Technical Specifications
Detailed comparison of technical parameters.
| Coating & Rotation Performance | |
|---|---|
| Vacuum Adsorption Force | Adjustable with real-time display |
| Substrate Size | 5 mm – 120 mm (5 inches) |
| Speed Range | 50 – 10,000 rpm |
| Acceleration Range | 10 – 10,000 rpm/s (adjustable) |
| Motor Speed Stability | ±1 rpm |
| Spin Coating Uniformity | ±1% |
| Rotation Direction | Forward and reverse rotation supported |
| Cycle Duration | 0 – 10,000 s (adjustable) |
| Control & Interface | |
| Human-Machine Interface | 4.3-inch touch screen |
| Set Data | Unlimited data groups; 10 speeds per group (standard) |
| Data Storage | Unlimited data storage capacity |
| Data Protection | Power-failure protection (default function) |
| Stylus | BAMBOO resistive pen (standard) |
| Electrical & Vacuum System | |
| Op. Voltage (Spin Coater) | AC 100–250 V, single-phase, 50/60 Hz |
| Op. Voltage (Pump) | Standard 220VAC, 50Hz; Optional 110VAC, 60Hz |
| Spin Coater Power | 200W |
| Pump Power | 180W |
| Pumping Speed | ≥ 50 L/min |
| Max Vacuum | -85 kPa |
| Environment & Dimensions | |
| Dimensions (Spin Coater) | 210 mm (W) × 220 mm (D) × 160 mm (H) |
| Weight (Spin Coater) | 10 kg |
| Weight (Pump) | 4.5kg |
| Sound Level | ≤55 dB |
| Ambient Temperature | 0 – 40 °C |
| Relative Humidity | < 85% |
| Warranty | 1 Year |
| Oil-free Vacuum Pump Parameters | |
|---|---|
| Voltage | Standard 220VAC, 50Hz; Optional 110VAC, 60Hz |
| Power | 180W |
| Pumping Speed | ≥50 L/min |
| Max Vacuum | -85 kPa |
| Noise Level | ≤55 dB |
| Net Weight | 4.5 kg |
| Dimensions | 185(L) × 100(W) × 210(H) mm |
CE Declaration
Verified by Shenzhen Shuofeng Testing
