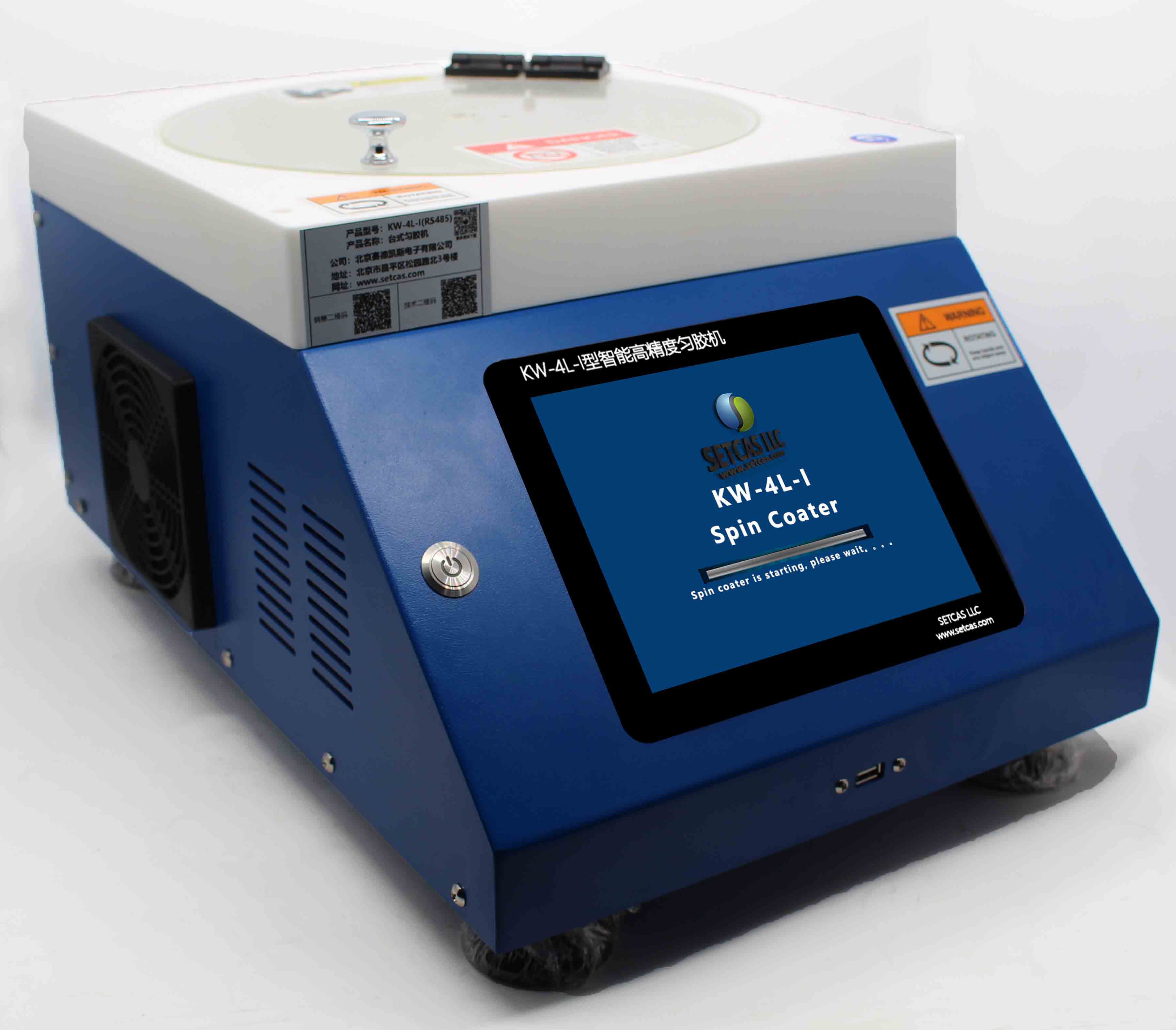

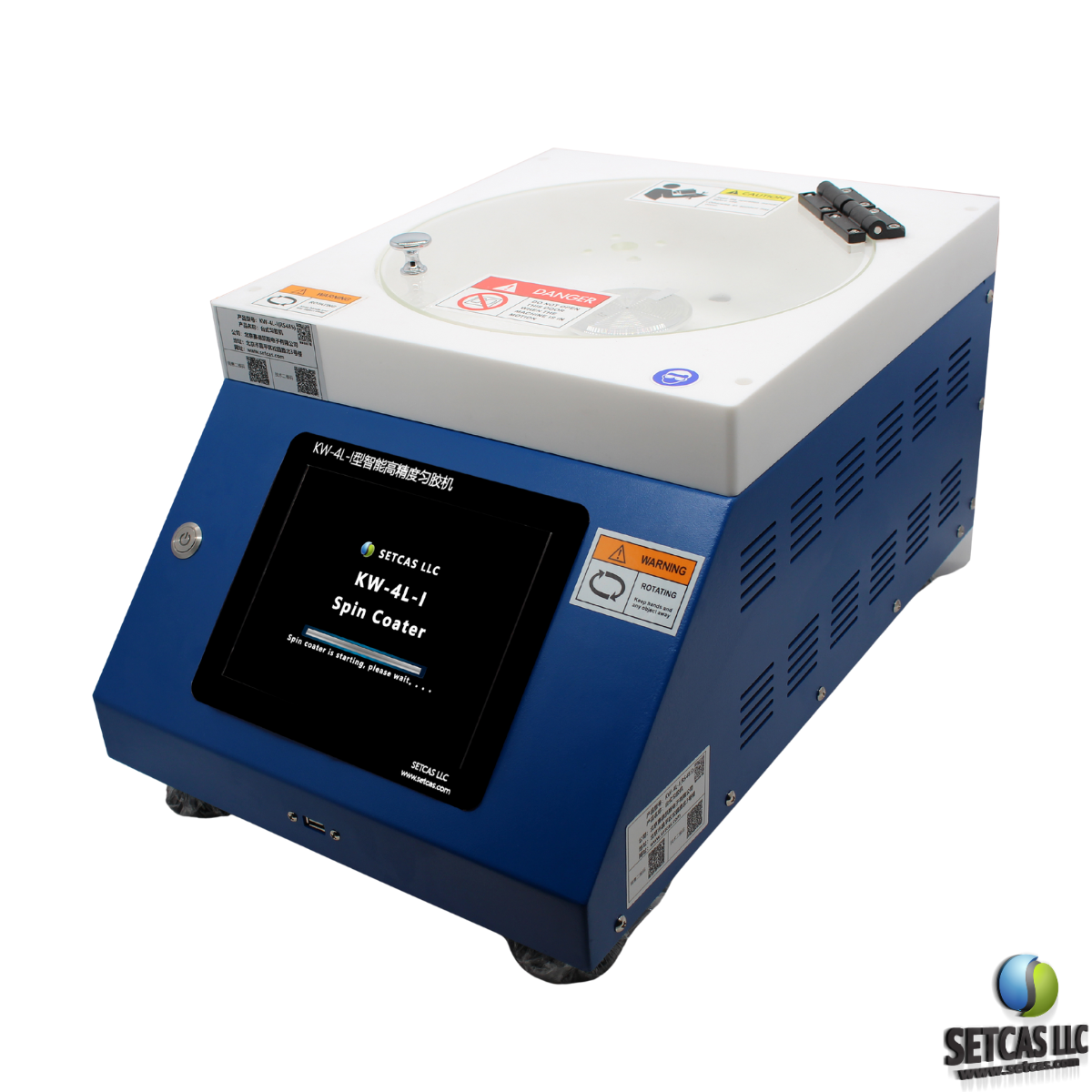

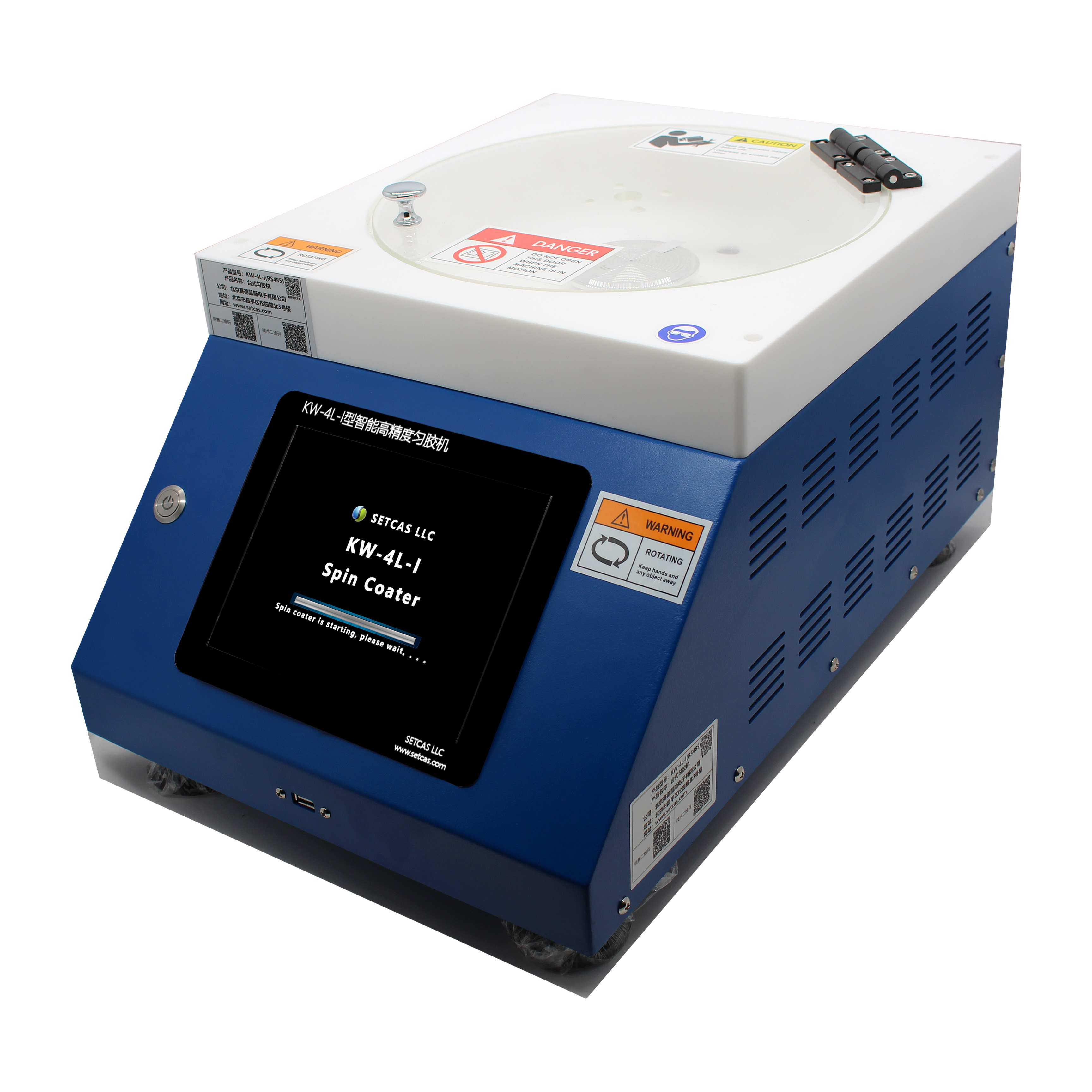

SETCAS KW-4L Spin Coater Factory direct sales Including vacuum pump and chucks
KW-4L
Large Substrate
Spin Coater
Precise, Safe, and Reliable Coating Solutions for Research & Industry.
Experience top-tier spin coating performance with our feature-packed instrument—engineered for safety, versatility, and non-stop reliability, perfect for labs and small-batch production!
Benefit from comprehensive safety protections: glue overflow protection with alarm, and insufficient adsorption alarm paired with interlock protection to prevent operational risks. The chamber is crafted from polytetrafluoroethylene (PTFE) for durability and easy maintenance.
Enjoy flexible operation and seamless connectivity: bidirectional motor rotation (supports forward & reverse), an ultra-wide speed range of 10 – 12,000 rpm (actual performance), and RS485 communication interface with standard MODBUS-RTU protocol—free remote communication software is included, and the instrument is compatible with wired mouse and keyboard for intuitive control.
Smart and reliable design: formula/recipe data is protected against power failure with automatic backup, and the instrument supports 24/7 uninterrupted operation for continuous workflow.
Exclusive to the KW-4L-I model: integrated automatic glue dispensing and foot pedal control for enhanced convenience and efficiency!
Choose Your Model
Select the configuration that best fits your experimental needs.
KW-4L
Standard 8-Inch Screen Version- Substrate Size: 5-200mm (standard); up to 600mm (optional).
- Screen: Large 8-inch touch screen interface.
- Speed: 10 - 12,000 rpm (standard).
- Comms: USB, RS485 (MODBUS-RTU).
- Safety: Glue overflow & Interlock protection.
KW-4L-I
With Auto Dispensing & Foot Pedal- All features of KW-4L, PLUS:
- Auto Dispensing: Integrated Automatic Glue Dispensing function.
- Control: Includes Foot Pedal Function for hands-free operation.
- Acceleration: 10 - 30,000 rpm/s (Adjustable).
- Data: Unlimited groups, 15 speeds per group.
- Convenience: Optimized for high-efficiency workflow.
Technical Specifications
Detailed comparison of technical parameters.
| Coating & Rotation Performance | |
|---|---|
| Substrate Size | 5-200mm (standard) / 5-600mm (optional) |
| Speed Range | 10-12,000 rpm (standard) / 10-20,000 rpm (optional) |
| Acceleration Range | 10 – 30,000 rpm/s (adjustable) |
| Automatic Glue Dispensing | YES |
| Motor Speed Stability | ±1 rpm |
| Spin Coating Uniformity | ±1% |
| Control & Interface | |
| Human Machine Interface | 8-inch touch screen |
| Communication Interface | USB (std), RS485 (std, MODBUS-RTU); Wireless mouse/keyboard supported |
| Foot Pedal Function | YES |
| Set Data | Unlimited group data, each group of 15 speeds (standard) |
| Cycle Duration | 0 - 10,000s |
| Data Protection | Built-in power-failure protection (default) |
| Electrical & Physical | |
| Op. Voltage (Spin Coater) | AC 100–250 V, single phase, 50/60 Hz |
| Op. Voltage (Pump) | AC 220V (Standard); AC 110V (Optional) |
| Spin Coater Power | 650W |
| Pump Power | 350W (SC-550V) |

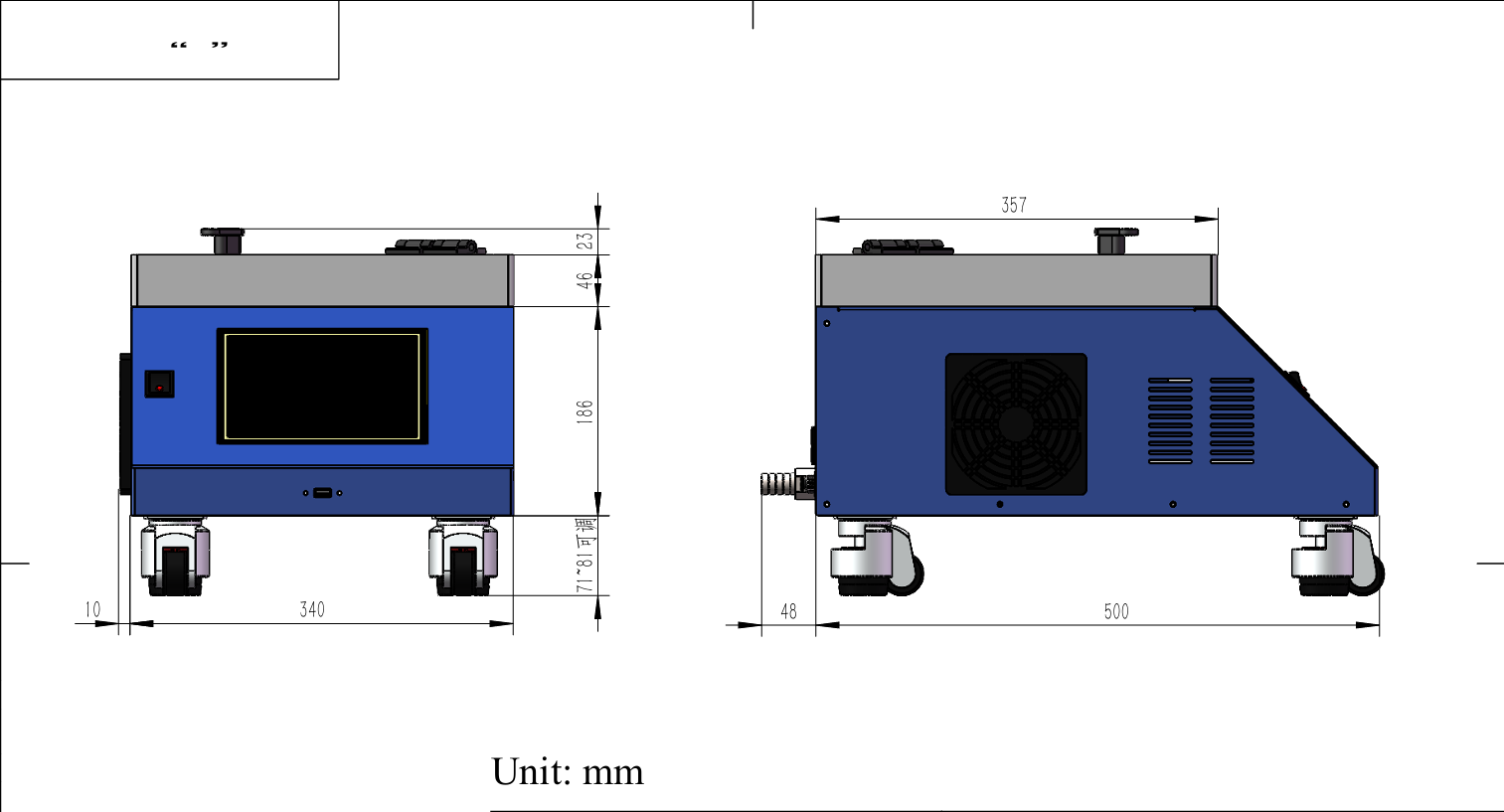

| Dimensions (Spin Coater) | 340 mm (W) × 500 mm (D) × 250 mm (H) |
| Weight | Spin Coater: 18kg | Pump: 9kg |
| Warranty | 1 Year |
| Performance & Control | |
|---|---|
| Substrate Size | 5-200mm (standard); 5-600mm (optional) |
| Speed Range | 10 – 12,000 rpm; Optional: 10 – 20,000 rpm |
| Acceleration Range | 10-30,000 rpm/s (Adjustable) |
| Interface | 8-inch touch screen |
| Communication Interface | Standard: USB, RS485 (MODBUS-RTU protocol); Wireless mouse/keyboard |
| Data & Operation | |
| Set Data | Unlimited group data, each group of 15 speeds (standard) |
| Circle Duration | 0-10,000s |
| Data Protection | Default with power-failure protection |
| Hardware & Power | |
| Operating Voltage | AC 100-250V, single phase, 50/60Hz |
| Spin Coater Power | 650W |
| Dimensions & Weight | 340x500x250mm | 18kg (Coater), 9kg (Pump) |
| Vacuum Pump | SC-550V (Power: 350W, Speed: ≥60L/min) |
| Oil-free Vacuum Pump Parameters | |
|---|---|
| Voltage | Standard 220VAC, 50Hz; Optional 110VAC, 60Hz |
| Power | 350W (Standard for SC-550V) |
| Pumping Speed | ≥60 L/min |
| Max Vacuum | -85 kPa |
| Noise Level | ≤55 dB |
CE Declaration
Verified by Shenzhen Shuofeng Testing
