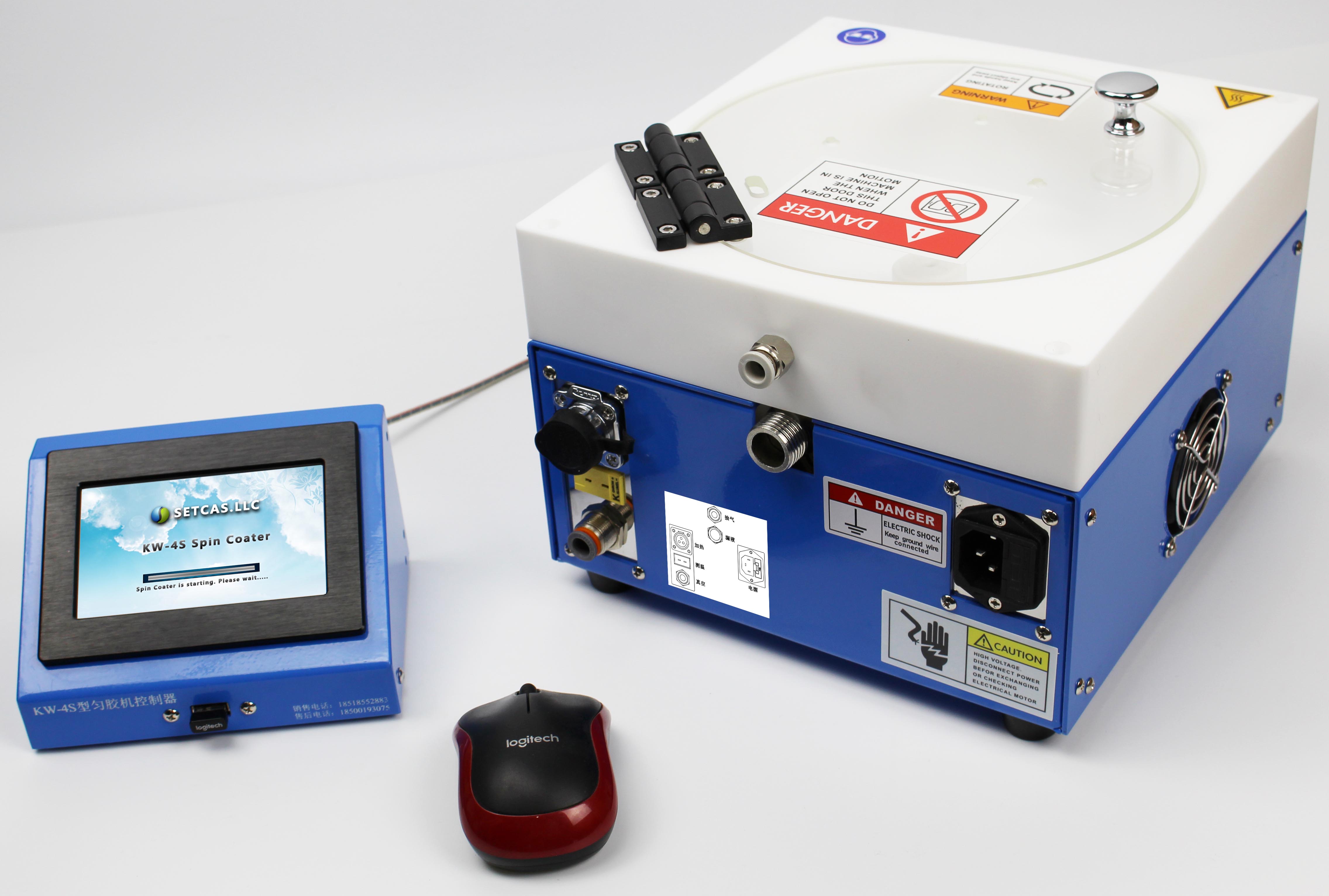

SETCAS KW-4S Spin Coater Factory direct sales Including vacuum pump and chucks
KW-4S Spin Coater for Glove Box Heating
|
1. Alarm setting to prevent substrate fly-off 2. Alarm setting to prevent glue penetration 3. Machine reversible 4. Function of prevent power-down protection 5. Acceleration adjustable 6. Temperature heating ：room temperature -200℃。 |
|
|
Precision |
Index |
|
Substrate size |
5-100mm |
|
Speed range |
1-10000RPM |
|
Speed accuracy |
1RPM |
|
Speed stability |
±0.1% |
|
Acceleration range |
1-10000RPM/S |
|
Glue uniformity |
±1% |
|
Heating range |
Room temperature-200℃ |
|
Control interface |
Index |
|
HMI |
4.3” touch screen |
|
Communication interface |
Enable to connect with wireless mouse and keyboard：machine can place inside the glove box and operate by remote control outside the glove box |
|
Rotate direction |
Support forward |
|
Stylus pen |
BAMBOO resistance pen (standard) |
|
Vacuum pump |
AP-550V Oil-fee vacuum pump / FY Oil-vacuum pump |
|
Program Mode |
Parameter |
|
Data setting |
Unlimited groups data,，10 speeds per group (standard) |
|
Each time |
0-10000 MIN |
|
Data storage |
Unlimited groups data |
|
Electrical parameters |
Index |
|
Spin coater alternating AC power port |
AC100-250V |
|
Vacuum pump alternating AC power port |
AC220V(standard) AC110V(optional) |
|
Spin coater power |
200W |
|
Vacuum pump power |
350W |
|
Vacuum pump pumping speed |
≥60L/MIN |
|

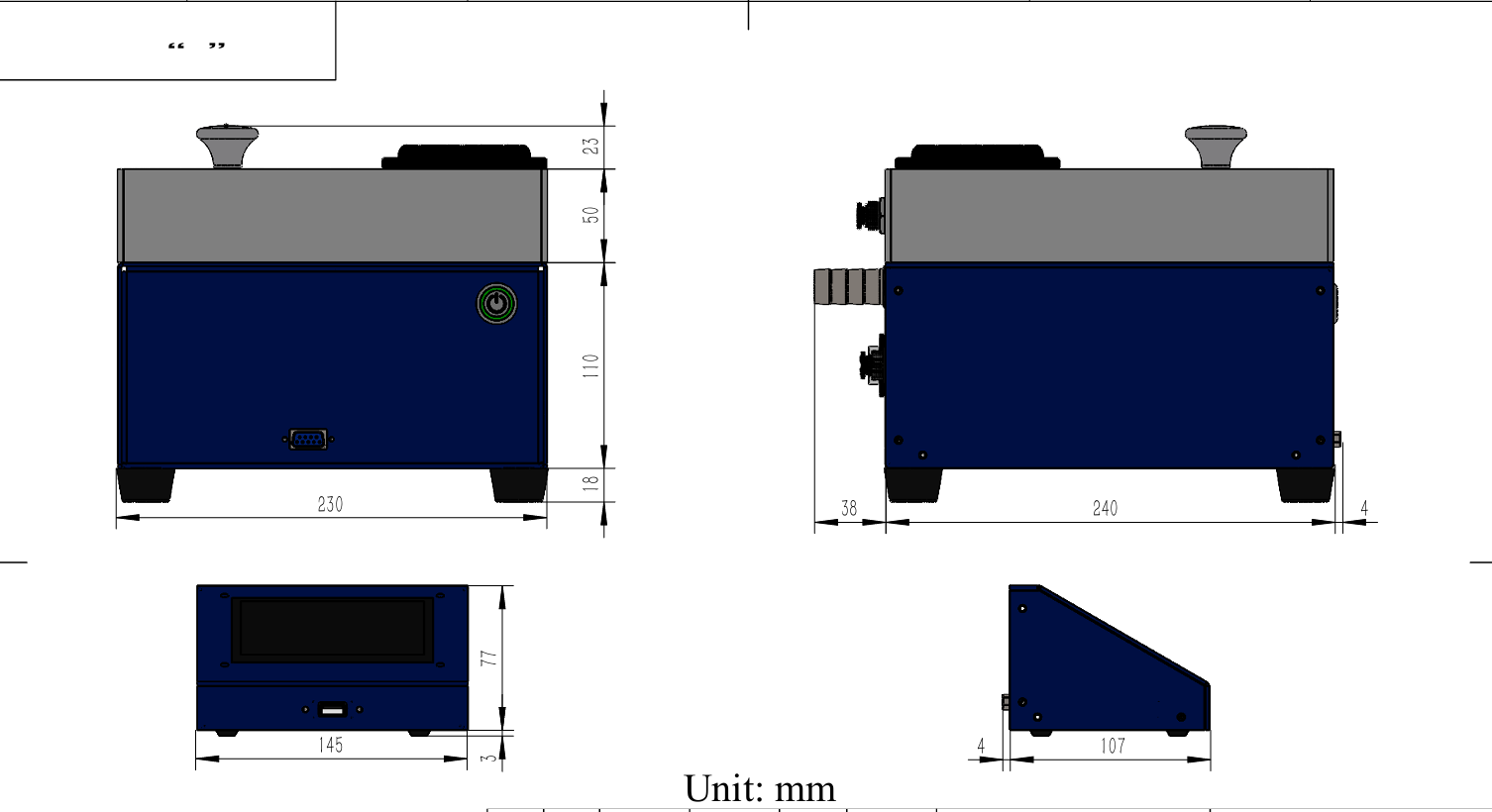

Size of machine |
Parameter |
|
Dimension |
210mm(W)X220mm(D)X160mm(H) |
|
Weight |
10KG |
|
Pump weight |
9KG |
|
External factor |
Parameter |
|
Ambient temperature |
0-40℃ |
|
Relative humidity |
< 85% |
|
Place on table |
The level of the machine can be adjusted by the built-in spirit level |
|
Technical support |
Index |
|
Warranty |
1 year |
