SETCAS KW-4E Spin Coater Factory direct sales Including vacuum pump and chucks

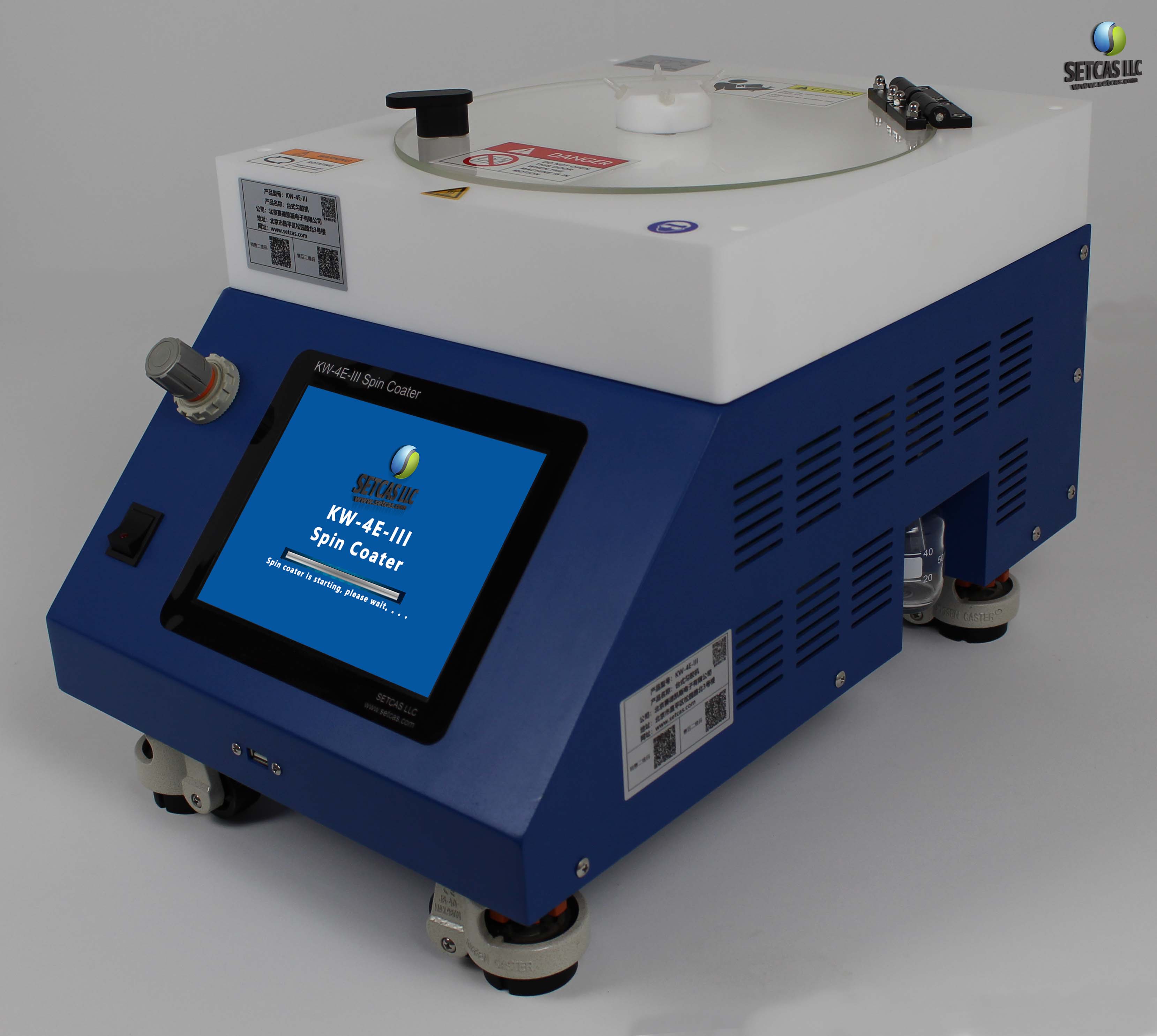

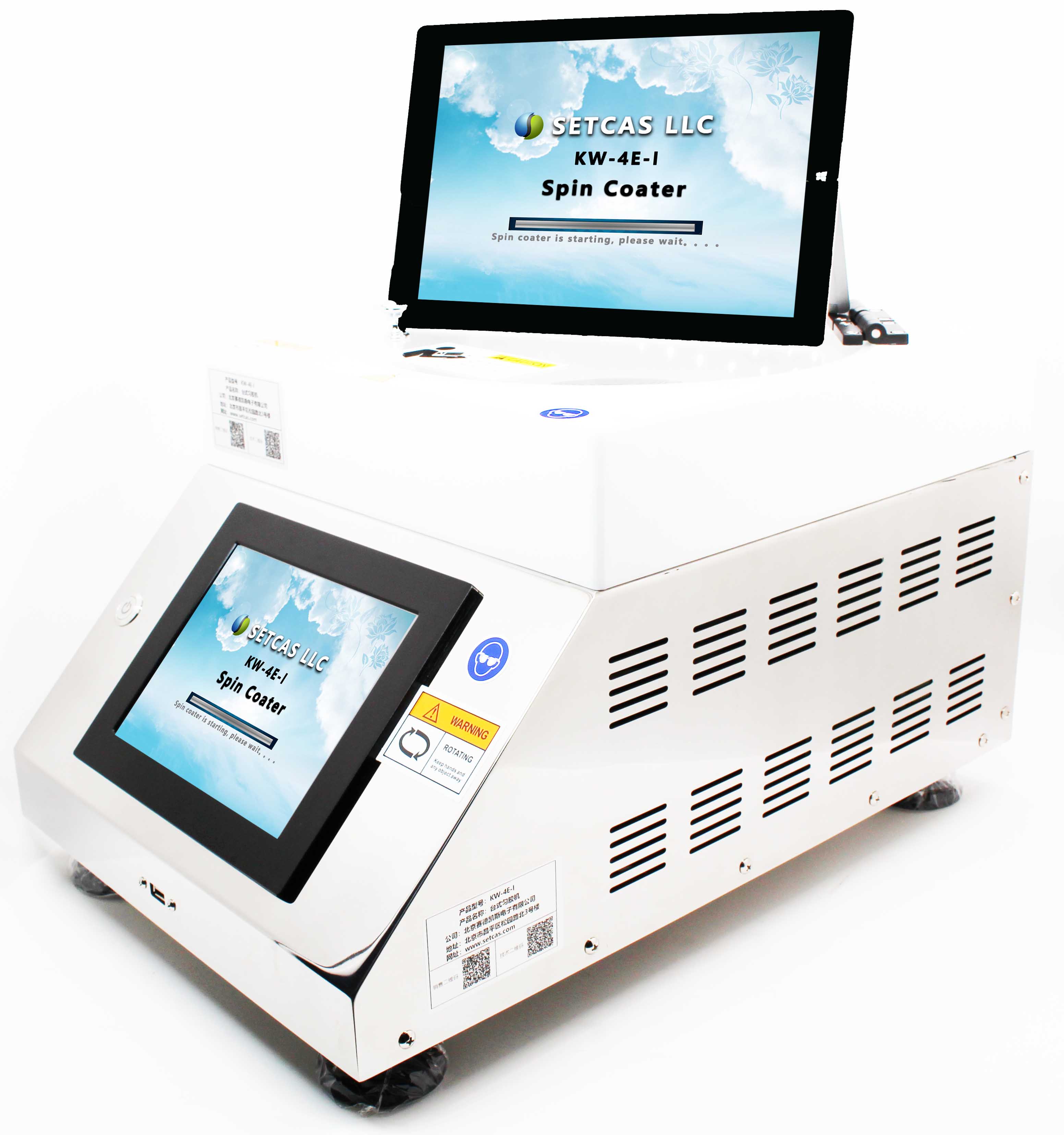

KW-4E/KW-4E-I/KW-4E-II Spin Coater
Spin Coater Model: KW-4E Intelligent remote control (Temperature control model)
Spin Coater Model: KW-4E Details of Parameter |
|
Accessories Spin Coater PC Control Software |
Please check with factory to get a free sample |
Accessories of Transmission Control Protocol or Bluetooth RS485 |
Please check with factory to get a free sample |
1. Alarm setting of glue protection 2. Spin coating forward and reverse can be switched freely 3. Real-time display with speed rising curve 4. Insufficient adsorption alarm and interlock 5. The whole spin coating chamber is made of PTFE material to prevent acid-proof, alkali-proof and corrosion-proof 6. Chamber with exhaust gas extraction function 7. Prevent power-down protection function temperature heating :room temperature–200℃。 |
|
Precision |
Index |
Substrate dimension |
5-200mm |
Speed range |
1-12000RPM |
Speed accuracy |
1RPM |
Speed stability |
±0.1% |
Acceleration range |
1-10000RPM/S |
Rotate direction |
Forward and reverse can be switched |
Glue uniformity |
±1% |
Heating parameters |
Index |
Temperature control range |
Room temperature-200℃ |
Heating rate (chamber temperature) |
To 100℃(1S)、to 200℃(2S) |
Cooling rate (chamber temperature) |
To room temperature (2S) Glue |
Control signal |
Index |
HMI |
8” touch screen |
Communication Interface |
USB (standard)//RS485(optional)/Bluetooth(standard) |
Stylus pen |
BAMBOO Resistance pen (standard) |
Third party options |
Logitech Wireless Mouse/Wireless Keyboard/Kingston 2G Disk |
Vacuum pump |
SC-550VOil-free pump/FY Oil pump |
Program Mode |
Parameter |
Data setting |
Unlimited groups data Each group of 15 speeds (standard) or unlimited speed (optional) |
Each time |
0-10000 MIN |
Data storage |
Unlimited groups data |
Data protection |
Default with power-down protection |
Electrical parameters |
Index |
Spin coater AC power port |
AC100-250V |
Vacuum pump AC power port |
AC220V(standard) AC110V(optional) |
Spin coater power |
650W |
Vacuum pump power |
350W |
Vacuum pump pumping speed |
≥60L/MIN |
Size of machine |
Parameter |
Dimension |
340mm(W)X500mm(D)X250mm(H) |
Weight |
18KG |
Pump weight |
9KG |
External factor |
Parameter |
Ambient temperature |
0-40℃ |
Relative humidity |
< 85% |
Placed on the table |
The level of the machine can be adjusted by the built-in spirit level |
Technical support |
Index |
Warranty |
1 year |
