SETCAS SC-AF-I Auto Film Coater Automatic coating machine Factory direct sales

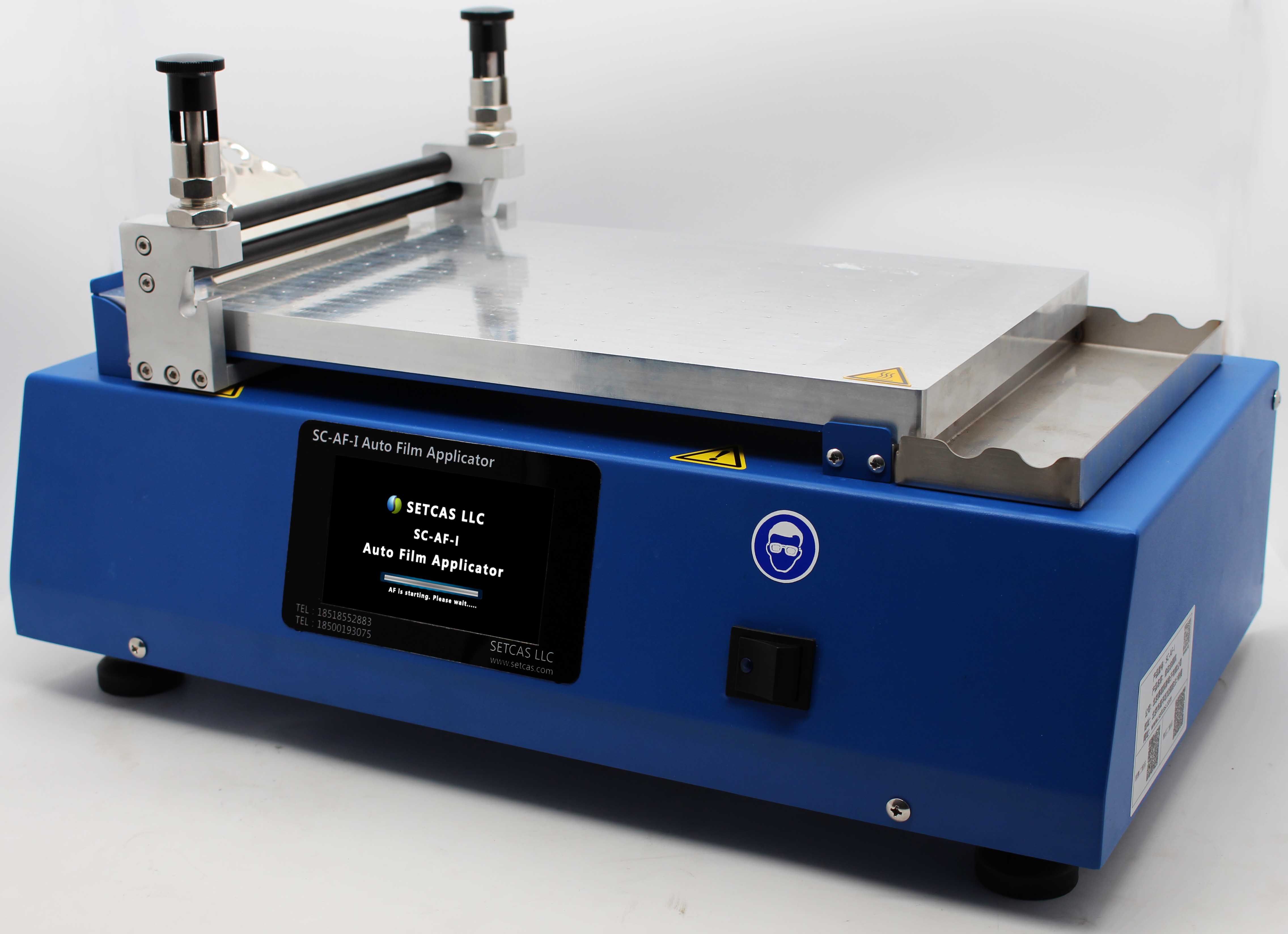

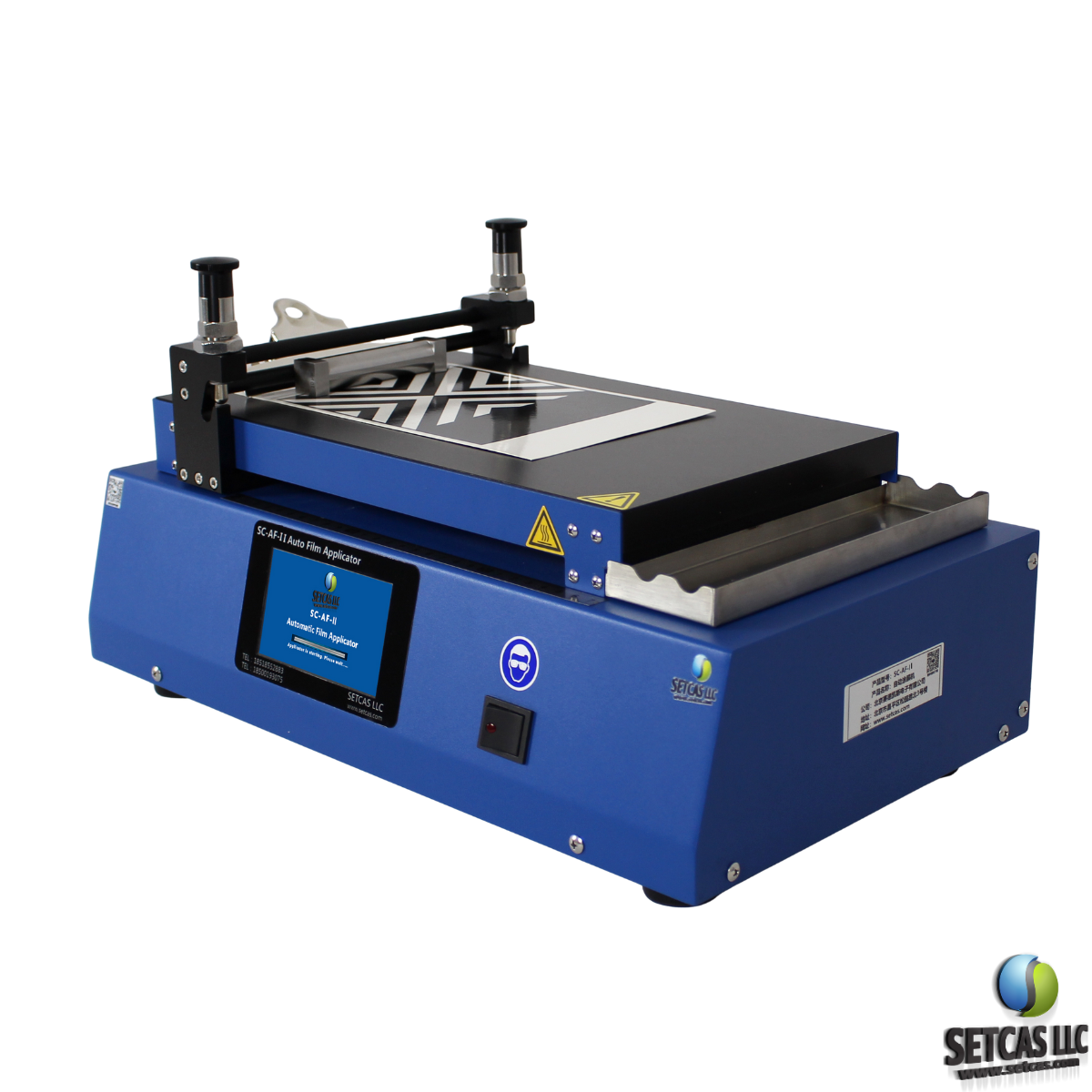

SC-AF-I
Auto-film Applicator
(Vacuum Adsorption)
Reliable Precision for Film Preparation with A4 Vacuum Plate.
The SC-AF-I Auto-film Applicator offers reliable precision for film preparation, featuring adjustable moving speed (1–500 mm/s, 1 mm resolution, ±1 mm/s accuracy) for consistent coating results.
It is equipped with a 210mm × 297mm (A4) vacuum adsorption plate for stable sample fixation. The system supports multi-specification film formation using a 240mm wire bar (4–200 μm wet film thickness), interchangeable scrapers (55/100/150 mm width, 1–3500 μm thickness), and an 80mm four-side applicator (5–1000 μm thickness). Ideal for R&D and small-batch production requiring versatile, high-precision film coating.
Technical Specifications
Detailed technical parameters.
| Motion & Platform | |
|---|---|
| Moving Speed Range | 1 - 500 mm/s |
| Moving Speed Resolution | 1 mm |
| Moving Speed Accuracy | ±1 mm/s |
| Vacuum Adsorption Plate | 210 mm × 297 mm (A4 Size) |
| Applicator Options (Included) | |
| Wire Bar Width | 240 mm |
| Wire Bar Wet Film Thickness | 4 - 200 μm |
| Adjustable Wiper Width | 55 mm / 100 mm / 150 mm |
| Wiper Wet Film Thickness | 1 - 3500 μm |
| Four-Sided Preparer Width | 80 mm |
| Four-Sided Wet Film Thickness | 5 - 1000 μm |
| Physical Dimensions | |
| Overall Dimensions | 470 mm (L) × 356 mm (W) × 203 mm (H) |
| Net Weight | 13.2 kg |
| Warranty Period | 1 Year |
CE Declaration
Verified by Shenzhen Shuofeng Testing
